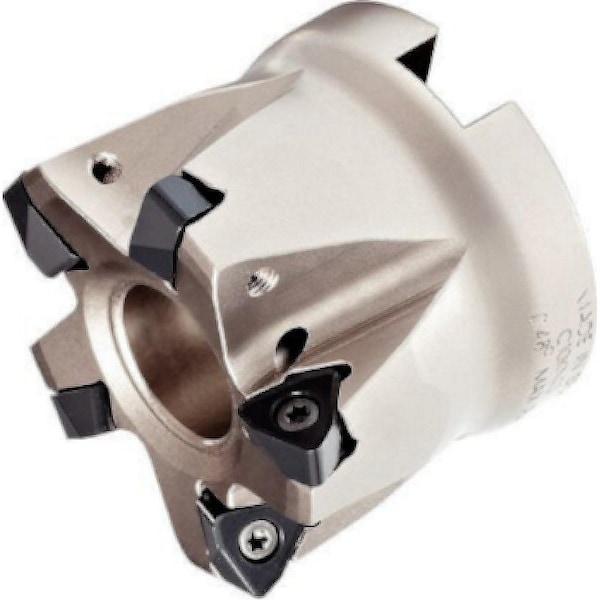

Indexable Profiling End Mill, M370 Series, High Speed Steel, 1.25mm Depth of Cut
Mfr # M370D063Z06WO08
Zoro # G3782990
product price:Â $795.99
/ea
Free Shipping & Returns
Key Features
Series
M370
Overall Length
50.00mm
Depth of Cut
1.25mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M370D063Z06WO08
Zoro #
G3782990
UPC #
4021169616341
Country of Origin
China
Dimensions
Overall Length
50.00mm
Depth of Cut
1.25mm
Insert Size
80412
Max. Cutting Dia.
63.00mm
Arbor Dia.
22.00mm
Hub Outside Dia.
60.00mm
Details
Item
Indexable Profiling End Mill
Series
M370
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Trigon
Rake
-10.763 Degrees Radial, -11 Degrees Axial
Number of Inserts
6
Compatible Hardware
Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9
Insert Holding Type
Screw
Insert Style
WOEJ SRMH
Cutting Application
3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
Coolant Fed
Coolant Through
Max. Speed
25,500 RPM
Features
Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges
ANSI Code
M370D063Z06WO08
ISO Number
M370D063Z06WO08
Description
Indexable Profiling End Mill, Max. Cutting Dia. 63.00mm, Depth of Cut 1.25mm, Overall Length 50.00mm, ANSI Code M370D063Z06WO08, Compatible Hardware Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
