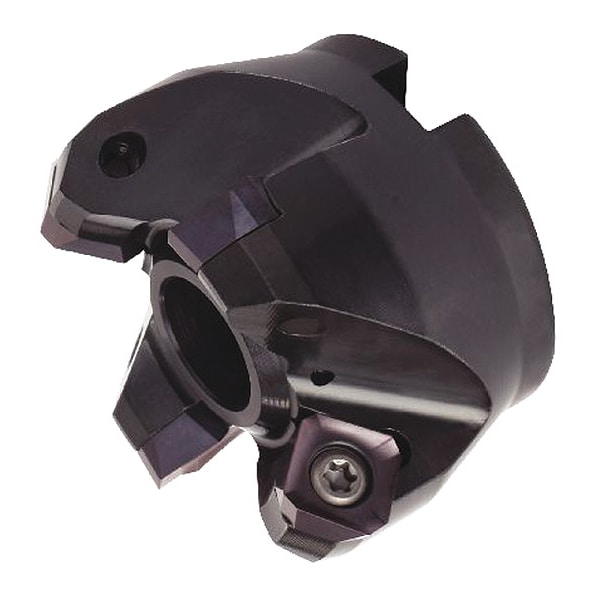

Indexable Profiling End Mill, M660 Series, High Speed Steel, 6.40mm Depth of Cut
Mfr # 12396205400
Zoro # G3799580
product price:Â $1,319.99
/ea
Free Shipping & Returns
Key Features
Series
M660
Overall Length
63.00mm
Depth of Cut
6.40mm
Material - Machining
High Speed Steel
Insert Size
1205
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
12396205400
Zoro #
G3799580
UPC #
4021169020773
Country of Origin
Czechia
Dimensions
Overall Length
63.00mm
Depth of Cut
6.40mm
Insert Size
1205
Max. Cutting Dia.
138.30mm
Arbor Dia.
40.00mm
Hub Outside Dia.
89.00mm
Details
Item
Indexable Profiling End Mill
Series
M660
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Square
Cutting Application
Face Milling, Side and Face Milling
Features
Excellent Chip Evacuation, Four Cutting Edges, Strong Tool Body Design
ISO Number
12396205400
Compatible Hardware
Insert Screw M4.5x0.75 x 11 T20
Insert Style
SN
Max. Speed
7,900 RPM
Coolant Fed
Non-Coolant Through
Insert Holding Type
Screw
Number of Inserts
8
ANSI Code
12396205400
Description
Indexable Profiling End Mill, Max. Cutting Dia. 138.30mm, Depth of Cut 6.40mm, Overall Length 63.00mm, ANSI Code 12396205400, Compatible Hardware Insert Screw M4.5x0.75 x 11 T20, Coolant Fed Non-Coolant Through, Cutting Application Face Milling, Side and Face Milling
