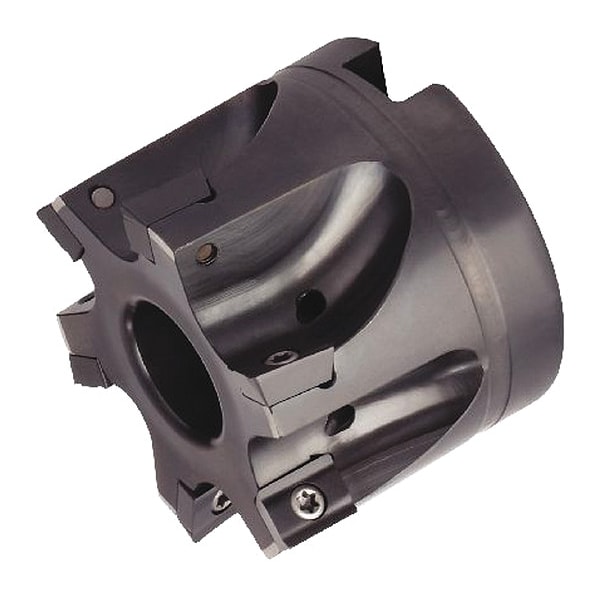

Indexable Profiling End Mill, M680 Series, High Speed Steel, 9.50mm Depth of Cut
Mfr # 12396906400
Zoro # G3795651
product price:Â $752.99
/ea
Free Shipping & Returns
Key Features
Series
M680
Overall Length
40.00mm
Depth of Cut
9.50mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
12396906400
Zoro #
G3795651
UPC #
4021169175886
Country of Origin
India
Dimensions
Overall Length
40.00mm
Depth of Cut
9.50mm
Insert Size
10T308
Arbor Dia.
22.00mm
Hub Outside Dia.
38.29mm
Details
Item
Indexable Profiling End Mill
Series
M680
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
85 Degrees Parallelogram
Rake
-11 Degrees Radial, 6 Degrees Axial
Compatible Hardware
Insert Screw M3x0.5 x 8 T9, Torx Wrench
Max. Speed
14,000 RPM
ISO Number
12396906400
Insert Holding Type
Screw
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Features
Small Yet Strong Insert
Coolant Fed
Coolant Through
Number of Inserts
6
Insert Style
AONT MM
ANSI Code
12396906400
Description
Indexable Profiling End Mill, Depth of Cut 9.50mm, Overall Length 40.00mm, ANSI Code 12396906400, Compatible Hardware Insert Screw M3x0.5 x 8 T9, Torx Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Restrictions
WARNING:
Cancer
For more information go to
www.P65Warnings.ca.gov
