  6. Indexable Profiling End Mill, VHSC Series, High Speed Steel, 16.00mm Depth of Cut
Widia Indexable Profiling End Mill, VHSC Series, High Speed Steel, 16.00mm Depth of Cut VHSC032Z03A32XD16 - main
Shop WIDIA

Indexable Profiling End Mill, VHSC Series, High Speed Steel, 16.00mm Depth of Cut

  • Mfr # VHSC032Z03A32XD16

  • Zoro # G3788469

product price:  $732.99
/ea
Free Shipping & Returns

Key Features

Series
VHSC
Overall Length
135.00mm
Depth of Cut
16.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VHSC032Z03A32XD16
Zoro #
G3788469
UPC #
4059782462892
Country of Origin
Multiple

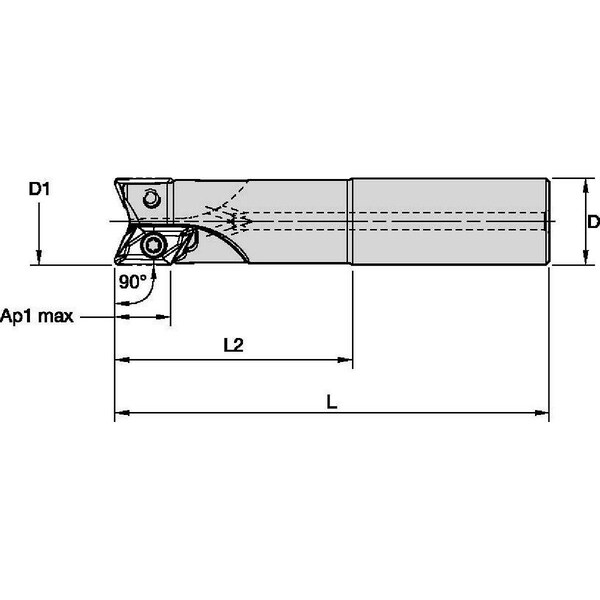

Dimensions

Overall Length
135.00mm
Depth of Cut
16.00mm
Shank Dia.
32.00mm
Insert Size
16M508
Head Projection Length
75.00mm
Shank Length
60.00mm
Min. Cutting Dia.
32.00mm

Details

Item
Indexable Profiling End Mill
Series
VHSC
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
89.27 Degrees Parallelogram
Rake
-11 Degrees Radial, 7 Degrees Axial
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank
Toolholder Style
XD16
Insert Style
XDET FRALP
Max. Speed
41,500 RPM
Shank Type - Machining
Straight
Features
Best-in-Class Solution for Thin-Walled and Stepping Down Machining, Consistent Axial Gage Length with Insert Nose Radii From 0.008 in (0.2mm) up to 0.236 in (6mm), Only One Cutter Body Style to Load Inserts with Nose Radii from 0.008 in (0.2mm) up to 0.236 in (6mm), Productivity Booster up to 525in3/min (8600cm3/min MRR at Machining Aluminum Components
Coolant Fed
Coolant Through
Compatible Hardware
DP5009A, Torx Plus Drive Wrench
Insert Holding Type
Screw
ISO Number
VHSC032Z03A32XD16
Number of Coolant Holes
2
Number of Inserts
3
ANSI Code
VHSC032Z03A32XD16

Description

Indexable Profiling End Mill, Depth of Cut 16.00mm, Shank Dia. 32.00mm, Overall Length 135.00mm, ANSI Code VHSC032Z03A32XD16, Compatible Hardware DP5009A, Torx Plus Drive Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
