  6. Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut

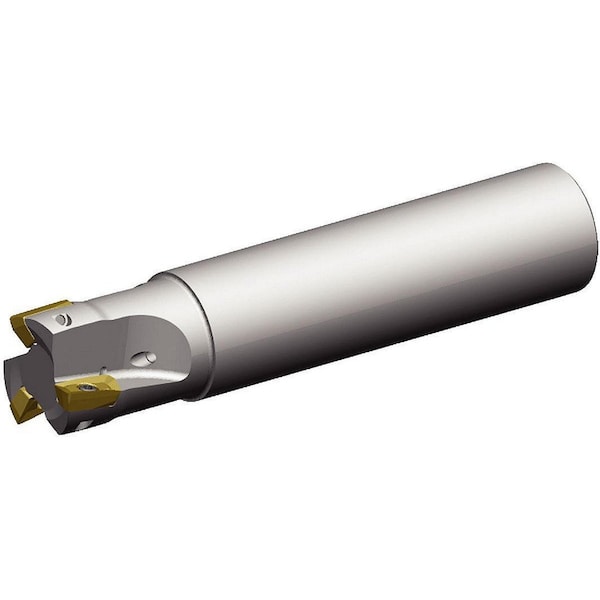

Widia Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut VSM11D025Z04A25XD11L210 - main

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.52mm Depth of Cut

  • Mfr # VSM11D025Z04A25XD11L210

  • Zoro # G3782290

product price:  $403.99
/ea
Free Shipping & Returns

Key Features

Series
VSM11
Overall Length
210.00mm
Depth of Cut
11.52mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM11D025Z04A25XD11L210
Zoro #
G3782290
UPC #
4050839641499
Country of Origin
Canada

Dimensions

Overall Length
210.00mm
Depth of Cut
11.52mm
Insert Size
110408
Shank Dia.
25.00mm
Head Projection Length
50.00mm
Neck Dia.
22.75mm
Shank Length
160.00mm
Min. Cutting Dia.
25.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-6.917 Degrees Radial, 8 Degrees Axial
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Toolholder Style
XDPT11
Side Cutting Edge Angle
90 Degrees
ANSI Code
VSM11D025Z04A25XD11L210
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Max. Speed
30,200 RPM
ISO Number
VSM11D025Z04A25XD11L210
Coolant Fed
Coolant Through
Insert Style
XD.T PD R
Insert Holding Type
Screw
Shank Type - Machining
Straight
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Number of Coolant Holes
1
Number of Inserts
4

Description

Indexable Profiling End Mill, Depth of Cut 11.52mm, Shank Dia. 25.00mm, Overall Length 210.00mm, ANSI Code VSM11D025Z04A25XD11L210, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
