  6. Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.53mm Depth of Cut

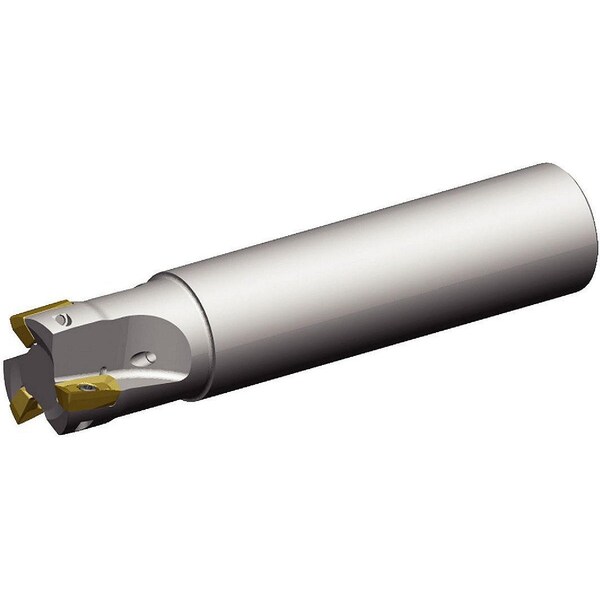

Widia Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.53mm Depth of Cut VSM11D022Z03A20XD11L170 - main

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.53mm Depth of Cut

  • Mfr # VSM11D022Z03A20XD11L170

  • Zoro # G3800621

product price:  $421.99
/ea
Free Shipping & Returns

Key Features

Series
VSM11
Overall Length
170.00mm
Depth of Cut
11.53mm
Material - Machining
High Speed Steel
Insert Size
110408
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VSM11D022Z03A20XD11L170
Zoro #
G3800621
UPC #
4050839641338
Country of Origin
United States

Dimensions

Overall Length
170.00mm
Depth of Cut
11.53mm
Insert Size
110408
Shank Dia.
20.00mm
Shank Length
140.00mm
Min. Cutting Dia.
22.00mm
Head Projection Length
30.00mm
Neck Dia.
18.35mm

Details

Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-7.867 Degrees Radial, 7.5 Degrees Axial
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Toolholder Style
XDPT11
Insert Style
XD.T PD R
Coolant Fed
Coolant Through
Number of Inserts
3
Shank Type - Machining
Straight
ANSI Code
VSM11D022Z03A20XD11L170
Insert Holding Type
Screw
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Number of Coolant Holes
1
ISO Number
VSM11D022Z03A20XD11L170
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Max. Speed
32,900 RPM
Side Cutting Edge Angle
90 Degrees

Description

Indexable Profiling End Mill, Depth of Cut 11.53mm, Shank Dia. 20.00mm, Overall Length 170.00mm, ANSI Code VSM11D022Z03A20XD11L170, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
