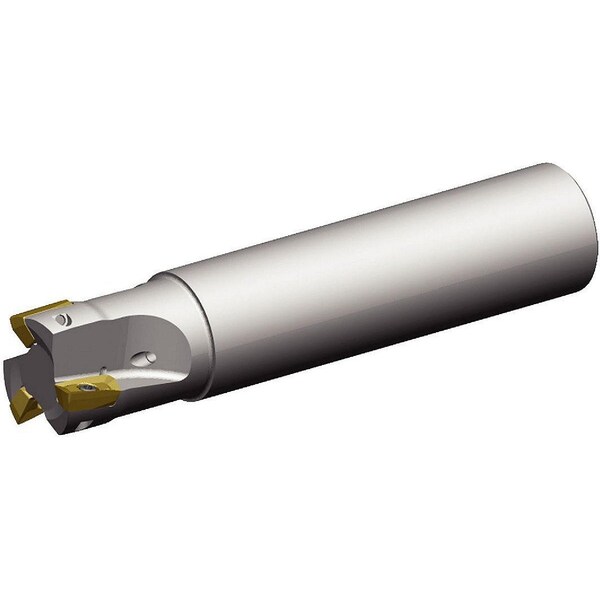

Widia Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.55mm Depth of Cut VSM11D020Z03A20XD11L110 - main

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.55mm Depth of Cut

  • Mfr # VSM11D020Z03A20XD11L110

  • Zoro # G3801811

product price:  $386.99
/ea
Free Shipping & Returns

Key Features

Series
VSM11
Overall Length
110.00mm
Depth of Cut
11.55mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM11D020Z03A20XD11L110
Zoro #
G3801811
UPC #
4050839640614
Country of Origin
China

Dimensions

Overall Length
110.00mm
Depth of Cut
11.55mm
Shank Dia.
20.00mm
Insert Size
110408
Neck Dia.
18.00mm
Min. Cutting Dia.
20.00mm
Head Projection Length
31.00mm
Shank Length
79.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-8 Degrees Radial, 7 Degrees Axial
Coolant Fed
Coolant Through
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Number of Coolant Holes
1
ISO Number
VSM11D020Z03A20XD11L110
Insert Holding Type
Screw
Insert Style
XD.T PD R
Side Cutting Edge Angle
90 Degrees
ANSI Code
VSM11D020Z03A20XD11L110
Shank Type - Machining
Straight
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Number of Inserts
3
Toolholder Style
XDPT11
Max. Speed
35,100 RPM
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish

Description

Indexable Profiling End Mill, Depth of Cut 11.55mm, Shank Dia. 20.00mm, Overall Length 110.00mm, ANSI Code VSM11D020Z03A20XD11L110, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
