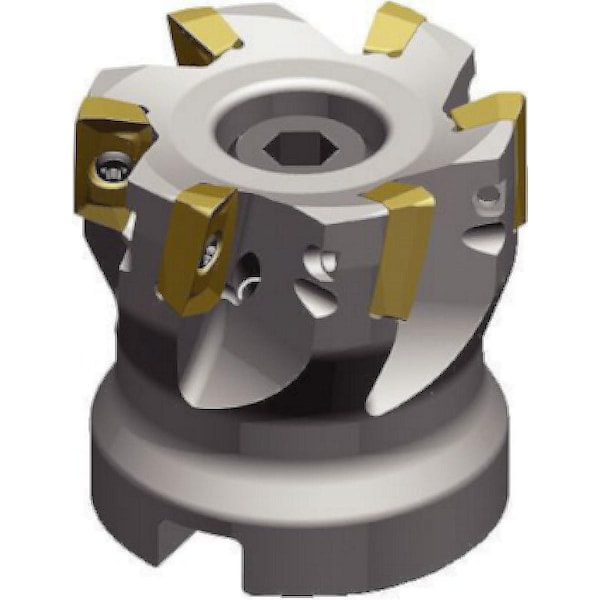

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 15.70mm Depth of Cut
Mfr # VSM17D125Z09S40XD17
Zoro # G3793332
product price:Â $1,232.99
/ea
Free Shipping & Returns
Key Features
Series
VSM17
Overall Length
63.00mm
Depth of Cut
15.70mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM17D125Z09S40XD17
Zoro #
G3793332
UPC #
4056544118325
Country of Origin
United States
Dimensions
Overall Length
63.00mm
Depth of Cut
15.70mm
Insert Size
1704
Arbor Dia.
40.00mm
Hub Outside Dia.
90.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-3.8 Degrees Radial, 15.5 Degrees Axial
Side Cutting Edge Angle
90 Degrees
ANSI Code
VSM17D125Z09S40XD17
Number of Inserts
9
Coolant Fed
Coolant Through
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability
Insert Holding Type
Screw
ISO Number
VSM17D125Z09S40XD17
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Insert Style
XD.T PE R
Max. Speed
15,200 RPM
Compatible Hardware
Coolant Screw Assembly M20, Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15
Description
Indexable Profiling End Mill, Depth of Cut 15.70mm, Overall Length 63.00mm, ANSI Code VSM17D125Z09S40XD17, Compatible Hardware Coolant Screw Assembly M20, Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
