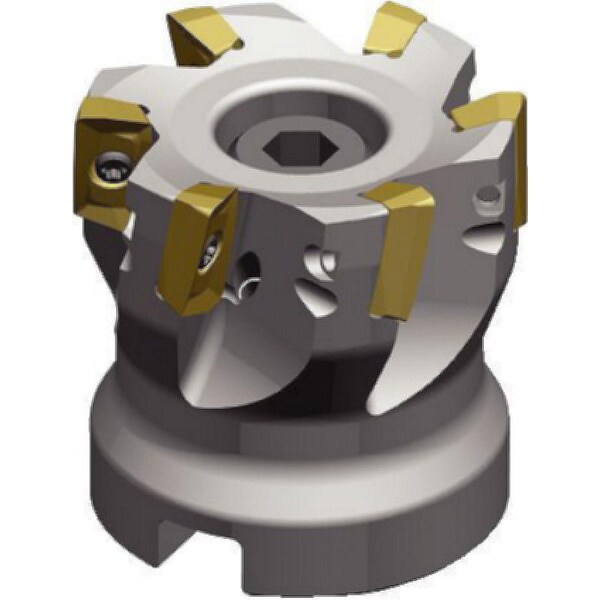

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 15.80mm Depth of Cut
Mfr # VSM17D100Z08S32XD17
Zoro # G3795329
product price:Â $1,084.99
/ea
Free Shipping & Returns
Key Features
Series
VSM17
Overall Length
50.00mm
Depth of Cut
15.80mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM17D100Z08S32XD17
Zoro #
G3795329
UPC #
4056544118226
Country of Origin
United States
Dimensions
Overall Length
50.00mm
Depth of Cut
15.80mm
Insert Size
1704
Arbor Dia.
32.00mm
Hub Outside Dia.
80.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-4.3 Degrees Radial, 14 Degrees Axial
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability
ISO Number
VSM17D100Z08S32XD17
Number of Inserts
8
Insert Style
XD.T PE R
Compatible Hardware
Coolant Screw Assembly M16, Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15
Max. Speed
17,200 RPM
Insert Holding Type
Screw
ANSI Code
VSM17D100Z08S32XD17
Coolant Fed
Coolant Through
Side Cutting Edge Angle
90 Degrees
Description
Indexable Profiling End Mill, Depth of Cut 15.80mm, Overall Length 50.00mm, ANSI Code VSM17D100Z08S32XD17, Compatible Hardware Coolant Screw Assembly M16, Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
