  6. Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut

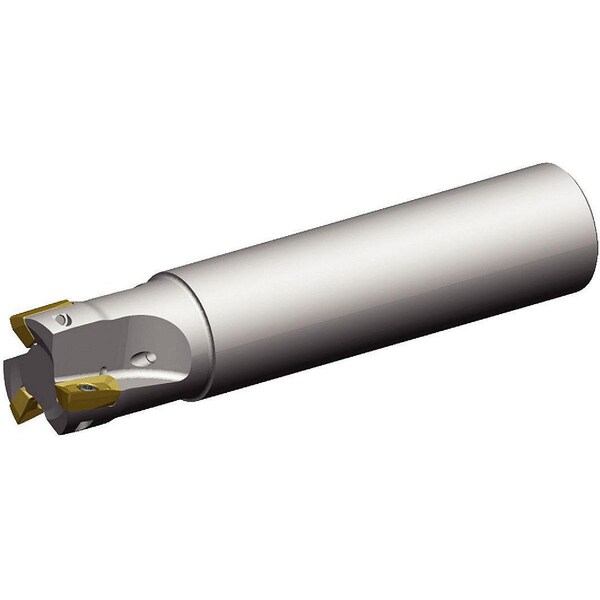

Widia Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut VSM17D040Z03A32XD17L250 - main

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut

  • Mfr # VSM17D040Z03A32XD17L250

  • Zoro # G3788399

product price:  $562.99
/ea
Free Shipping & Returns

Key Features

Series
VSM17
Overall Length
250.00mm
Depth of Cut
16.20mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM17D040Z03A32XD17L250
Zoro #
G3788399
UPC #
4056544119124
Country of Origin
Germany

Dimensions

Overall Length
250.00mm
Depth of Cut
16.20mm
Shank Dia.
32.00mm
Insert Size
1704
Neck Dia.
36.00mm
Min. Cutting Dia.
40.00mm
Shank Length
200.00mm
Head Projection Length
50.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-6.9 Degrees Radial, 8.5 Degrees Axial
Number of Coolant Holes
1
Coolant Fed
Coolant Through
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
ANSI Code
VSM17D040Z03A32XD17L250
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Toolholder Style
XDPT17
Insert Holding Type
Screw
Compatible Hardware
Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15
Number of Inserts
3
Side Cutting Edge Angle
90 Degrees
ISO Number
VSM17D040Z03A32XD17L250
Shank Type - Machining
Straight
Max. Speed
29,800 RPM
Insert Style
XD.T PE R

Description

Indexable Profiling End Mill, Depth of Cut 16.20mm, Shank Dia. 32.00mm, Overall Length 250.00mm, ANSI Code VSM17D040Z03A32XD17L250, Compatible Hardware Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
