  6. Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

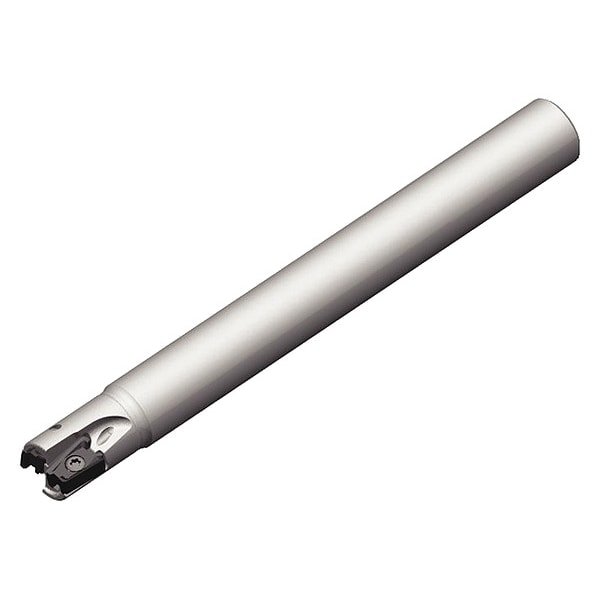

Widia Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut VSM490D032Z05A25XN10L110 - main

Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

  • Mfr # VSM490D032Z05A25XN10L110

  • Zoro # G3788414

product price:  $623.99
/ea
Free Shipping & Returns

Key Features

Series
VSM490-10
Overall Length
110.00mm
Depth of Cut
10.00mm
Material - Machining
High Speed Steel
Shank Dia.
25.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM490D032Z05A25XN10L110
Zoro #
G3788414
UPC #
4059782479098
Country of Origin
Multiple

Dimensions

Overall Length
110.00mm
Depth of Cut
10.00mm
Shank Dia.
25.00mm
Insert Size
100408
Neck Dia.
24.50mm
Shank Length
78.00mm
Head Projection Length
32.00mm
Min. Cutting Dia.
32.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM490-10
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Rectangle Mill
Rake
-15.4 Degrees Radial, -8 Degrees Axial
Shank Type - Machining
Straight
Coolant Fed
Coolant Through
Features
Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units, Reduced Shanks and Long Versions Available
Number of Coolant Holes
2
ISO Number
VSM490D032Z05A25XN10L110
Cutting Application
Face Milling, Side/Shoulder Milling: Square End
Compatible Hardware
Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9
Insert Style
XNGU SRMM
ANSI Code
VSM490D032Z05A25XN10L110
Toolholder Style
XN10
Side Cutting Edge Angle
90 Degrees
Insert Holding Type
Screw
Max. Speed
29,200 RPM
Number of Inserts
5

Description

Indexable Profiling End Mill, Depth of Cut 10.00mm, Shank Dia. 25.00mm, Overall Length 110.00mm, ANSI Code VSM490D032Z05A25XN10L110, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
