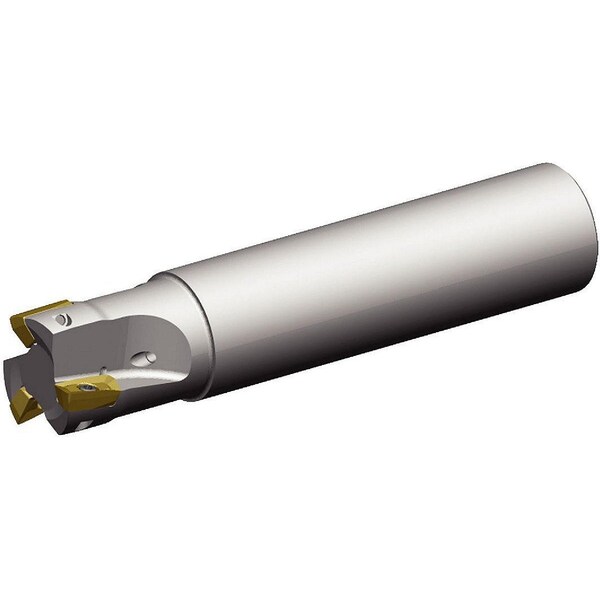

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.20mm Depth of Cut
Mfr # VSM17D040Z04A32XD17L250
Zoro # G3787662
product price:Â $593.99
/ea
Free Shipping & Returns
Key Features
Series
VSM17
Overall Length
250.00mm
Depth of Cut
16.20mm
Material - Machining
High Speed Steel
Insert Size
1704
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM17D040Z04A32XD17L250
Zoro #
G3787662
UPC #
4056544117328
Country of Origin
United States
Dimensions
Overall Length
250.00mm
Depth of Cut
16.20mm
Insert Size
1704
Shank Dia.
32.00mm
Neck Dia.
36.00mm
Min. Cutting Dia.
40.00mm
Shank Length
200.00mm
Head Projection Length
50.00mm
Description
Indexable Profiling End Mill, Depth of Cut 16.20mm, Shank Dia. 32.00mm, Overall Length 250.00mm, ANSI Code VSM17D040Z04A32XD17L250, Compatible Hardware Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
