  6. Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.40mm Depth of Cut

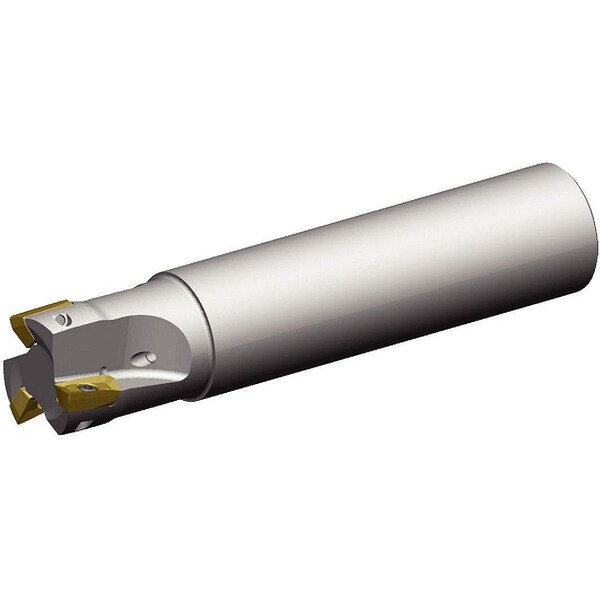

Widia Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.40mm Depth of Cut VSM17D025Z02A25XD17L170 - main

Indexable Profiling End Mill, VSM17 Series, High Speed Steel, 16.40mm Depth of Cut

  • Mfr # VSM17D025Z02A25XD17L170

  • Zoro # G3792675

product price:  $408.99
/ea
Free Shipping & Returns

Key Features

Series
VSM17
Overall Length
170.00mm
Depth of Cut
16.40mm
Material - Machining
High Speed Steel
Shank Dia.
25.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM17D025Z02A25XD17L170
Zoro #
G3792675
UPC #
4056544116925
Country of Origin
Germany

Dimensions

Overall Length
170.00mm
Depth of Cut
16.40mm
Shank Dia.
25.00mm
Insert Size
1704
Min. Cutting Dia.
25.00mm
Shank Length
126.00mm
Head Projection Length
44.00mm
Neck Dia.
21.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM17
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Rake
-9.1 Degrees Radial, 7 Degrees Axial
Number of Inserts
2
Insert Style
XD.T PE R
ISO Number
VSM17D025Z02A25XD17L170
Side Cutting Edge Angle
90 Degrees
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
ANSI Code
VSM17D025Z02A25XD17L170
Number of Coolant Holes
1
Coolant Fed
Coolant Through
Shank Type - Machining
Straight
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Toolholder Style
XDPT17
Max. Speed
41,800 RPM
Insert Holding Type
Screw
Compatible Hardware
Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15

Description

Indexable Profiling End Mill, Depth of Cut 16.40mm, Shank Dia. 25.00mm, Overall Length 170.00mm, ANSI Code VSM17D025Z02A25XD17L170, Compatible Hardware Insert Screw M4x0.7 x 8.4 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
