  6. Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

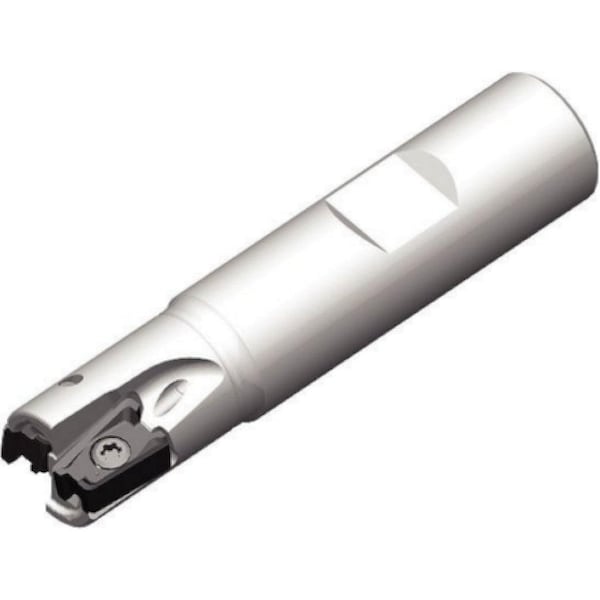

Widia Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut VSM490D025Z03B20XN10 - main

Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

  • Mfr # VSM490D025Z03B20XN10

  • Zoro # G3785702

product price:  $521.99
/ea
Free Shipping & Returns

Key Features

Series
VSM490-10
Overall Length
79.00mm
Depth of Cut
10.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM490D025Z03B20XN10
Zoro #
G3785702
UPC #
4059782480520
Country of Origin
Mexico

Dimensions

Overall Length
79.00mm
Depth of Cut
10.00mm
Shank Dia.
20.00mm
Insert Size
100408
Min. Cutting Dia.
25.00mm
Shank Length
51.00mm
Neck Dia.
19.50mm
Head Projection Length
28.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM490-10
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Rectangle Mill
Rake
-16.5 Degrees Radial, -8 Degrees Axial
Insert Holding Type
Screw
Number of Inserts
3
Coolant Fed
Coolant Through
ISO Number
VSM490D025Z03B20XN10
ANSI Code
VSM490D025Z03B20XN10
Side Cutting Edge Angle
90 Degrees
Shank Type - Machining
Weldon Flat
Number of Coolant Holes
2
Cutting Application
Face Milling, Side/Shoulder Milling: Square End
Toolholder Style
XN10
Insert Style
XNGU SRMM
Max. Speed
34,300 RPM
Features
Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units, Reduced Shanks Available
Compatible Hardware
Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9

Description

Indexable Profiling End Mill, Depth of Cut 10.00mm, Shank Dia. 20.00mm, Overall Length 79.00mm, ANSI Code VSM490D025Z03B20XN10, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
