  6. Indexable Profiling End Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut

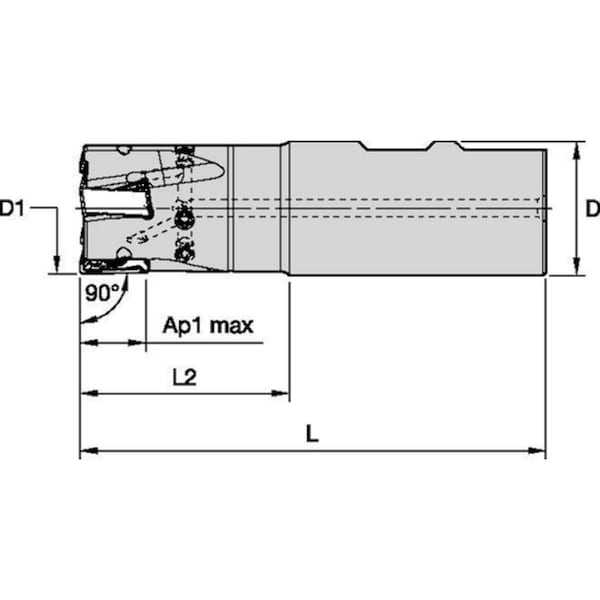

Widia Indexable Profiling End Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut VSM490D040Z03B32XN15 - main

Indexable Profiling End Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut

  • Mfr # VSM490D040Z03B32XN15

  • Zoro # G3798494

product price:  $604.99
/ea
Free Shipping & Returns

Key Features

Series
VSM490-15
Overall Length
111.00mm
Depth of Cut
15.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VSM490D040Z03B32XN15
Zoro #
G3798494
UPC #
4050841730655
Country of Origin
Multiple

Dimensions

Overall Length
111.00mm
Depth of Cut
15.00mm
Shank Dia.
32.00mm
Insert Size
15T608
Min. Cutting Dia.
40.00mm
Head Projection Length
50.00mm
Neck Dia.
31.50mm
Shank Length
61.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM490-15
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Rectangle Mill
Rake
-15.3 Degrees Radial, -8 Degrees Axial
Number of Inserts
3
Features
Effective Internal Coolant Feature, in Stepless in Solution, Reaching the Cutting Edge Precisely, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 90 Degrees to Run Precise Applications in Multiple Axial Passes
Coolant Fed
Coolant Through
Max. Speed
18,800 RPM
ANSI Code
VSM490D040Z03B32XN15
Shank Type - Machining
Weldon Flat
Insert Style
XNGU SRMM
Compatible Hardware
Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP
Number of Coolant Holes
2
Insert Holding Type
Screw
Toolholder Style
XN15
ISO Number
VSM490D040Z03B32XN15
Cutting Application
Face Milling, Pocketing, Side/Shoulder Milling: Square End, Slotting: Square End

Description

Indexable Profiling End Mill, Depth of Cut 15.00mm, Shank Dia. 32.00mm, Overall Length 111.00mm, ANSI Code VSM490D040Z03B32XN15, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Pocketing, Side/Shoulder Milling: Square End, Slotting: Square End
