  11. Indexable Square Shoulder End Mill, VSM11 Series, 1" Max Cut Dia, High Speed Steel

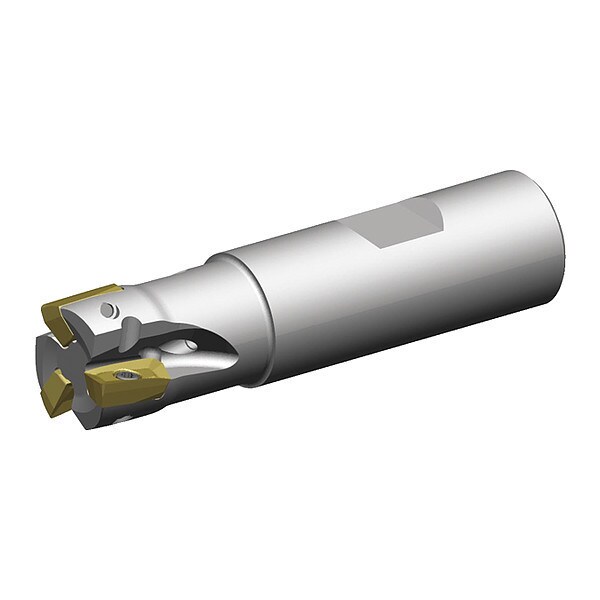

Widia Indexable Square Shoulder End Mill, VSM11 Series, 1" Max Cut Dia, High Speed Steel VSM11D100Z04W100XD11 - main

Indexable Square Shoulder End Mill, VSM11 Series, 1" Max Cut Dia, High Speed Steel

  • Mfr # VSM11D100Z04W100XD11

  • Zoro # G3802502

product price: $389.99
/ea
Free Shipping & Returns

Key Features

Series
VSM11
Cutting Dia.
1"
Overall Length
3 1/2 in
Number of Inserts Required
4
Depth of Cut
0.4530 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VSM11D100Z04W100XD11
Zoro #
G3802502
UPC #
4050839638536
Country of Origin
Bulgaria

Dimensions

Cutting Dia.
1"
Overall Length
3 1/2 in
Depth of Cut
0.4530 in
Shank Dia.
1 in
Insert Size
110408
Shank Length
2.2800 in
Neck Dia.
0.9120 in
Min. Cutting Dia.
1 in
Head Projection Length
1.2200 in
Max. Cutting Dia.
1 in

Details

Item
Indexable Square Shoulder End Mill
Series
VSM11
Number of Inserts Required
4
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Shank Shape
Weldon
Insert Holding Type
Screw
Shank Type - Machining
Weldon Flat
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Rake
-6.6 Degrees Radial, 8 Degrees Axial
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Number of Inserts
4
ANSI Code
VSM11D100Z04W100XD11
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Insert Style
XD.T PD R
Max. Speed
29,900 RPM
Toolholder Style
XDPT11
Insert Shape
75 Degrees Parallelogram
ISO Number
VSM11D100Z04W100XD11
Number of Coolant Holes
1
Coolant Fed
Coolant Through
Side Cutting Edge Angle
0 Degrees
Number of Flutes
4

Description

Indexable Square Shoulder End Mill, Max. Cutting Dia. 1 in, Shank Dia. 1 in, Weldon Flat, Overall Length 3 1/2 in, ANSI Code VSM11D100Z04W100XD11, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through
