Indexable Thread Turning Tool Holder, A06NER1, 6 in L, High Speed Steel, Top Notch Insert Shape
Mfr # A06NER1
Zoro # G3574582
product price: $212.99
/ea
Free Shipping & Returns
Key Features
Overall Length
6 in
Shank Material
High Speed Steel
Insert Shape
Top Notch
ANSI Code
A06NER1
Shank Dia.
3/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A06NER1
Zoro #
G3574582
UPC #
4021169729065
Country of Origin
United States
Dimensions
Overall Length
6 in
Shank Dia.
3/8 in
Insert Size
1
Head Length
1-1/4"
Min. Bore Dia.
11.18mm
Details
Item
Indexable Thread Turning Tool Holder
Shank Material
High Speed Steel
Insert Shape
Top Notch
ANSI Code
A06NER1
Rake
0 Degrees Axial, 0 Degrees Radial
Type
Top Notch Clamping
Lead Angle
0 Degrees
Cutting Direction
Right Hand
Insert Style
N.1L

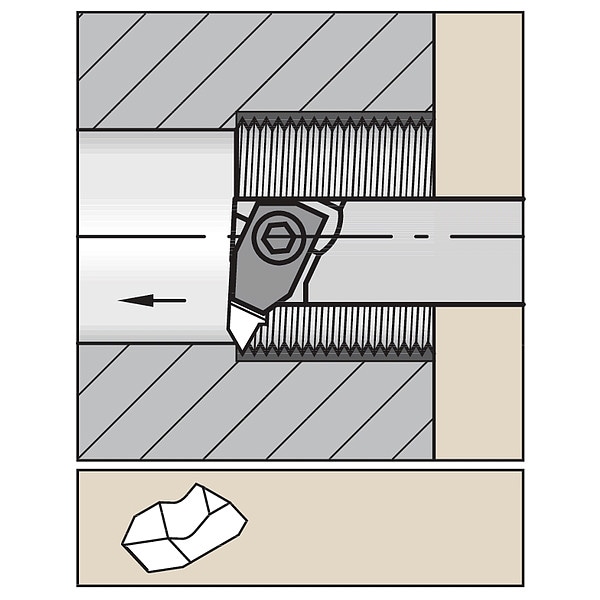

Cutting Application
Inside Diameter Internal Threading
Coolant Fed
Coolant Through
Toolholder Style
A-NE-1
Insert Holding Type
Top Clamping
Center to Cutting Tip
0"
ISO Number
A06NER1
Measurement System
Fractional Inch
Description
Indexable Thread Turning Tool Holder, Top Notch Clamping, Cutting Direction Right Hand, Rake 0 Degrees Axial, 0 Degrees Radial, Shank Dia. 3/8 in, Overall Length 6 in, Insert Shape Top Notch, Lead Angle 0 Degrees
