Indexable Thread Turning Tool Holder, A16NEL2, 12 in L, High Speed Steel, Top Notch Insert Shape
Mfr # A16NEL2
Zoro # G3574199
product price: $317.99
/ea
Free Shipping & Returns
Key Features
Overall Length
12 in
Shank Material
High Speed Steel
Insert Shape
Top Notch
Lead Angle
0 Degrees
Shank Dia.
1 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A16NEL2
Zoro #
G3574199
UPC #
4021169728389
Country of Origin
United States
Dimensions
Overall Length
12 in
Shank Dia.
1 in
Insert Size
2
Shank Length
269.94mm
Min. Bore Dia.
1-3/8"
Details
Item
Indexable Thread Turning Tool Holder
Shank Material
High Speed Steel
Insert Shape
Top Notch
ANSI Code
A16NEL2
Lead Angle
0 Degrees
Type
Top Notch Clamping
Rake
0 Degrees Axial, 0 Degrees Radial
Cutting Direction
Left Hand
Cutting Application

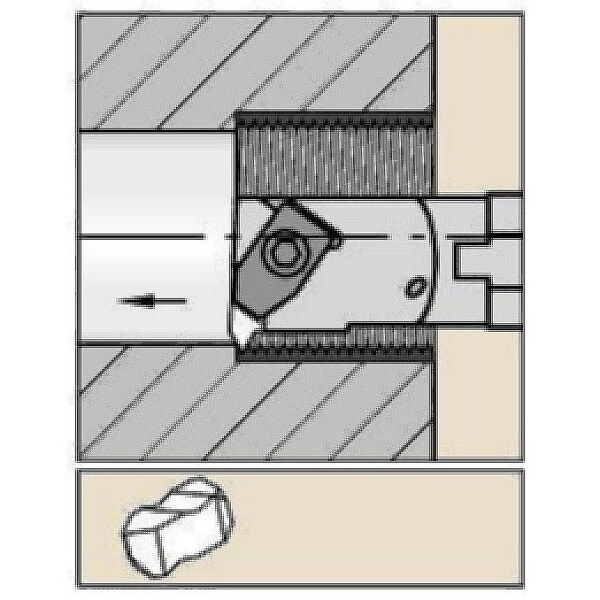

Inside Diameter Internal Threading
Coolant Fed
Coolant Through
Insert Style
N.2R
ISO Number
A16NEL2
Center to Cutting Tip
0"
Insert Holding Type
Top Clamping
Number of Coolant Holes
1
Toolholder Style
A-NE
Measurement System
Fractional Inch
Description
Indexable Thread Turning Tool Holder, Top Notch Clamping, Cutting Direction Left Hand, Rake 0 Degrees Axial, 0 Degrees Radial, Shank Dia. 1 in, Overall Length 12 in, Insert Shape Top Notch, Lead Angle 0 Degrees
