Indexable Thread Turning Tool Holder, A16NEL3, 12 in L, High Speed Steel, Top Notch Insert Shape
Mfr # A16NEL3
Zoro # G3572902
product price: $322.99
/ea
Free Shipping & Returns
Key Features
Overall Length
12 in
Shank Material
High Speed Steel
Insert Shape
Top Notch
Insert Size
3
Cutting Direction
Left Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A16NEL3
Zoro #
G3572902
UPC #
4021169729119
Country of Origin
United States
Dimensions
Overall Length
12 in
Insert Size
3
Shank Dia.
1 in
Min. Bore Dia.
1-3/8"
Details
Item
Indexable Thread Turning Tool Holder
Shank Material
High Speed Steel
Insert Shape
Top Notch
ANSI Code
A16NEL3
Cutting Direction
Left Hand
Lead Angle
0 Degrees
Rake
0 Degrees Axial, 0 Degrees Radial
Type
Top Notch Clamping
Insert Style
N.3R
Cutting Application

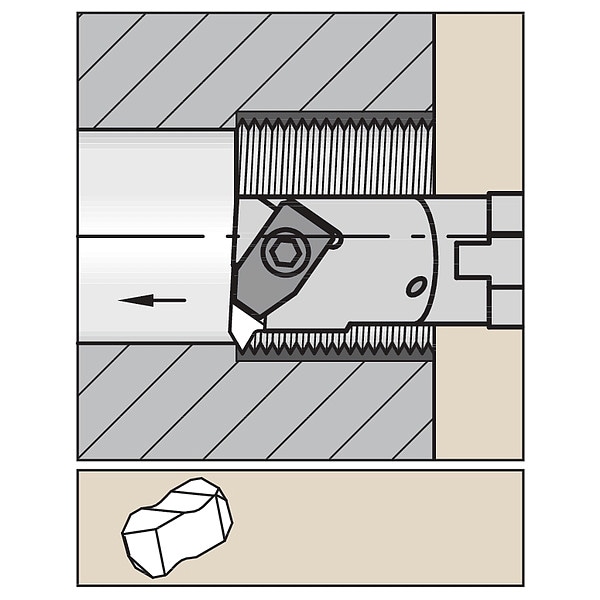

Inside Diameter Internal Threading
Coolant Fed
Coolant Through
Toolholder Style
A-NE
Insert Holding Type
Top Clamping
Center to Cutting Tip
0"
Number of Coolant Holes
1
ISO Number
A16NEL3
Measurement System
Fractional Inch
Description
Indexable Thread Turning Tool Holder, Top Notch Clamping, Cutting Direction Left Hand, Rake 0 Degrees Axial, 0 Degrees Radial, Shank Dia. 1 in, Overall Length 12 in, Insert Shape Top Notch, Lead Angle 0 Degrees
