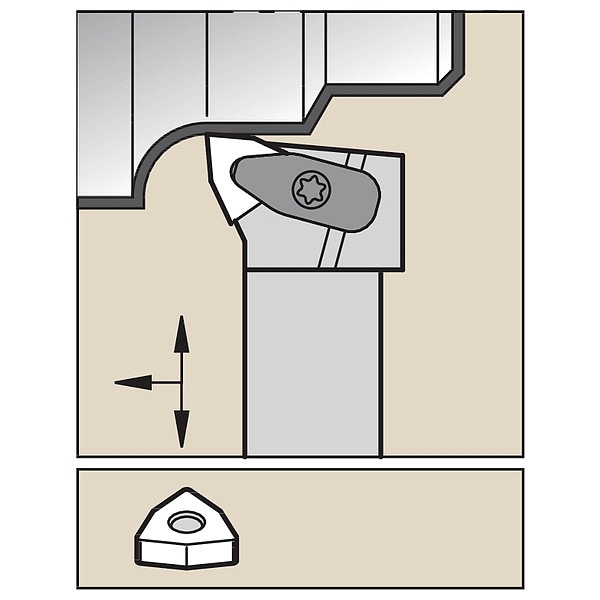

Widia Indexable Toolholder, DWLN, DWLNR164CKC3 - main

Indexable Toolholder, DWLN,

  • Mfr # DWLNR164CKC3

  • Zoro # G3793603

product price:  $124.99
/ea
Free Shipping & Returns

Key Features

Coolant Fed
Non-Coolant Through
Clamp
Kenclamp
Number of Inserts Required
1
Overall Length
5 in
Shank Length
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DWLNR164CKC3
Zoro #
G3793603
UPC #
4050841507523
Country of Origin
India

Dimensions

Overall Length
5 in
Shank Length
4 in
Insert Size
432
Cutting Length
0.3420"
Shank Width
1 in
Shank Height
1 in

Details

Item
Indexable Turning Toolholder
Coolant Fed
Non-Coolant Through
Clamp
Kenclamp
Number of Inserts Required
1
Material
Steel
Cutting Direction
Right Hand
Insert Shape
Trigon
Style
Negative
Shank
Square
Rake
Negative
Insert Holding Type
Clamp and Lock Pin
Insert Style
WN
Compatible Hardware
15IP Clamp Screw, 15IP Lock Pin, 15IP Shim Screw
Insert Clearance Angle
0 Degrees
ISO Number
DWLNR164CKC3
Cutting Application
Facing, Profiling, Turning
Side Cutting Edge Angle
-5 Degrees
Insert Inscribed Circle
1/2 in
Approach Angle
95 Degrees
Toolholder Style
DWLN
ANSI Code
DWLNR164CKC3
Material - Machining
High Speed Steel
Lead Angle
-5 Degrees deg
Measurement System
Decimal Inch

Description

Indexable Turning Toolholder, DWLN, Insert Style WN, Overall Length 5 in
