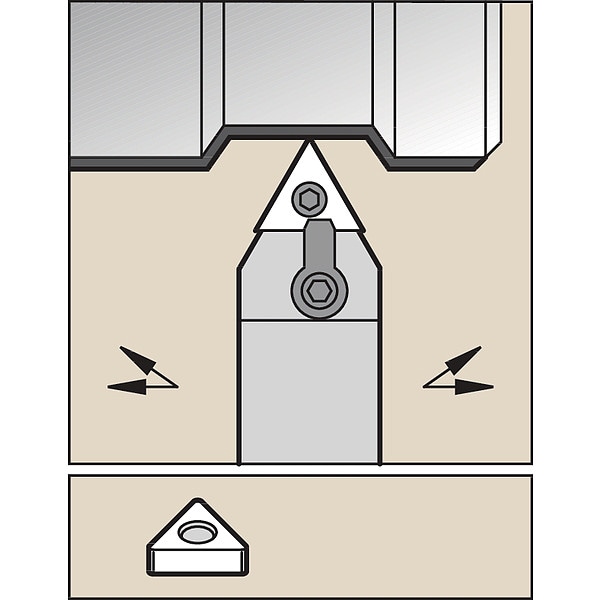

Widia Indexable Toolholder, MTEN, MTENNS164 - main

Indexable Toolholder, MTEN,

  • Mfr # MTENNS164

  • Zoro # G3790779

product price:  $115.99
/ea
Free Shipping & Returns

Key Features

Coolant Fed
Non-Coolant Through
Insert Size
432
Rake
-10 Degrees Axial, 0 Degrees Radial
Cutting Direction
Neutral
Insert Shape
Triangle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MTENNS164
Zoro #
G3790779
UPC #
4021169424069
Country of Origin
United States

Dimensions

Insert Size
432
Overall Length
6 in
Cutting Length
0.8660"
Shank Length
4.6000 in
Head Length
1-1/2 in
Shank Height
1 in
Shank Width
1 in

Details

Item
Indexable Turning Toolholder
Coolant Fed
Non-Coolant Through
Rake
-10 Degrees Axial, 0 Degrees Radial
Cutting Direction
Neutral
Insert Shape
Triangle
Number of Inserts Required
1
Shank
Square
Material
Steel
Clamp
Top and Hole Clamping
Insert Clearance Angle
0 Degrees
Compatible Hardware
3/32 in Lock Pin, 5/32 in Clamp Screw
Approach Angle
60 Degrees
Toolholder Style
MTEN
ANSI Code
MTENNS164
Insert Holding Type
Clamp and Lock Pin
Insert Inscribed Circle
1/2 in
Side Cutting Edge Angle
30 Degrees
Insert Style
TN
ISO Number
MTENNS164
Material - Machining
High Speed Steel
Measurement System
Decimal Inch
Lead Angle
30 Degrees

Description

Indexable Turning Toolholder, MTEN, Insert Style TN, Overall Length 6 in
