  6. Indexable Toolholder, SDJC,

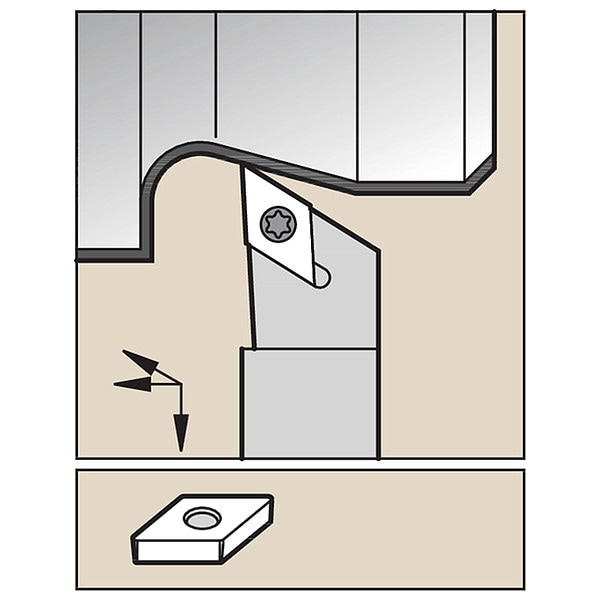

Widia Indexable Toolholder, SDJC, SDJCR163 - main
Shop WIDIA

Indexable Toolholder, SDJC,

  • Mfr # SDJCR163

  • Zoro # G3789464

product price:  $174.99
/ea
Free Shipping & Returns

Key Features

Cutting Length
0.4578"
Shank
Square
Insert Shape
55 Degrees Diamond
Insert Screw
T15
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SDJCR163
Zoro #
G3789464
UPC #
4021169422195
Country of Origin
United States

Dimensions

Cutting Length
0.4578"
Insert Size
32.52
Shank Length
5.1200 in
Overall Length
6 in
Shank Height
1 in
Shank Width
1 in
Head Length
7/8 in

Details

Item
Indexable Turning Toolholder
Shank
Square
Insert Shape
55 Degrees Diamond
Insert Screw
T15
Cutting Direction
Right Hand
Clamp
Screw
Style
Screw-On
Material
Steel
Number of Inserts Required
1
Rake
Positive
Compatible Hardware
M3.5 Shim Screw, T15 Insert Screw
Insert Inscribed Circle
3/8 in
Side Cutting Edge Angle
-3 Degrees
Coolant Fed
Non-Coolant Through
ISO Number
SDJCR163
Cutting Application
Profiling, Turning
Insert Style
DC
Approach Angle
93 Degrees
Insert Holding Type
Screw On
ANSI Code
SDJCR163
Toolholder Style
SDJC
Insert Clearance Angle
7 Degrees
Material - Machining
High Speed Steel
Measurement System
Decimal Inch
Lead Angle
-3 Degrees

Description

Indexable Turning Toolholder, SDJC, Insert Style DC, Overall Length 6 in
