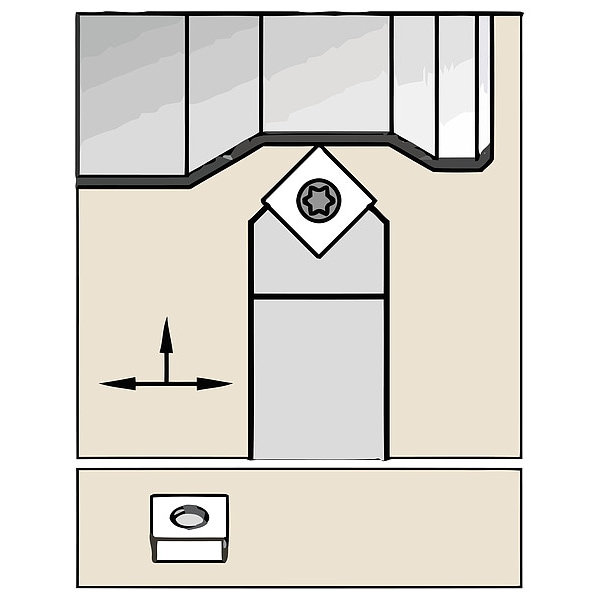

Widia Indexable Toolholder, SSDC, SSDCN083 - main

Indexable Toolholder, SSDC,

  • Mfr # SSDCN083

  • Zoro # G3789665

product price:  $144.99
/ea
Free Shipping & Returns

Key Features

Coolant Fed
Non-Coolant Through
Insert Shape
Square
Insert Screw
T15
Rake
0 Degrees Axial, 0 Degrees Radial
Style
Screw-On
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SSDCN083
Zoro #
G3789665
UPC #
4021169422126
Country of Origin
United States

Dimensions

Insert Size
32.52
Shank Length
2-7/8 in
Cutting Length
0.3750"
Overall Length
3-1/2 in
Shank Width
1/2 in
Shank Height
1/2 in
Head Length
5/8 in

Details

Item
Indexable Turning Toolholder
Coolant Fed
Non-Coolant Through
Insert Shape
Square
Insert Screw
T15
Rake
0 Degrees Axial, 0 Degrees Radial
Style
Screw-On
Number of Inserts Required
1
Cutting Direction
Neutral
Material
Steel
Shank
Square
Clamp
Screw
Side Cutting Edge Angle
45 Degrees
Toolholder Style
SSDC
Insert Inscribed Circle
3/8 in
ISO Number
SSDCN083
Insert Clearance Angle
7 Degrees
Cutting Application
Facing, Profiling, Turning
Insert Holding Type
Screw On
Approach Angle
45 Degrees
Compatible Hardware
T15 Insert Screw
Insert Style
SC
ANSI Code
SSDCN083
Material - Machining
High Speed Steel
Measurement System
Decimal Inch
Lead Angle
45 Degrees

Description

Indexable Turning Toolholder, SSDC, Insert Style SC, Overall Length 3-1/2 in
