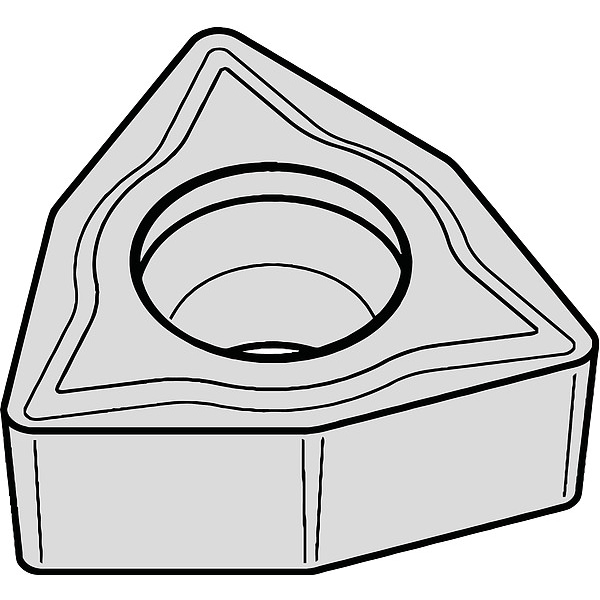

Widia Insert, Trigon, 1.5, WPHT, 1 WPHT1511 CM1 - main

Insert, Trigon, 1.5, WPHT, 1

  • Mfr # WPHT1511 CM1

  • Zoro # G3874709

product price: $10.39
/ea
Sold in multiples of 5 for $51.95

Key Features

Insert Shape
Trigon
Insert Style
WPHT
Inscribed Circle
1.5
Insert Size
0.1875"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WPHT1511 CM1
Zoro #
G3874709
UPC #
4021169373077
Country of Origin
United States

Dimensions

Insert Size
0.1875"
Corner Radius
1
Insert Thickness
0.0620"
Thickness
1
Through Hole Inside Dia.
0.0850 in
Cutting Edge Length
3.26mm

Details

Item
Insert
Insert Shape
Trigon
Insert Style
WPHT
Inscribed Circle
1.5
Chip-Breaker
Yes
Grade
CM1
Rake
Positive
ISO Number
WPHTS30104
Cutting Direction
Neutral
Material - Machining
Carbide
Manufacturer Grade
CM1
Finish - Machining
Bright (Uncoated)
ANSI Code
WPHT1511
Chip-Breaker Style
On One Side
Primary Material Application
Nickel, Titanium
Included Angle
80 Degrees
Secondary Material Application ISO Code
K, M, N, P
Shape
Trigon
Number of Cutting Edges
3
Clearance Angle
11 Degrees
Primary Material Application ISO Code
S
Cutting Application
Outside and Inside Diameter Turning
Measurement System
Fractional Inch
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole

Description

Insert, Inscribed Circle 3/16 in, Bright (Uncoated)
