  11. Insert, Trigon, 2, WPGT, .5, Carbide

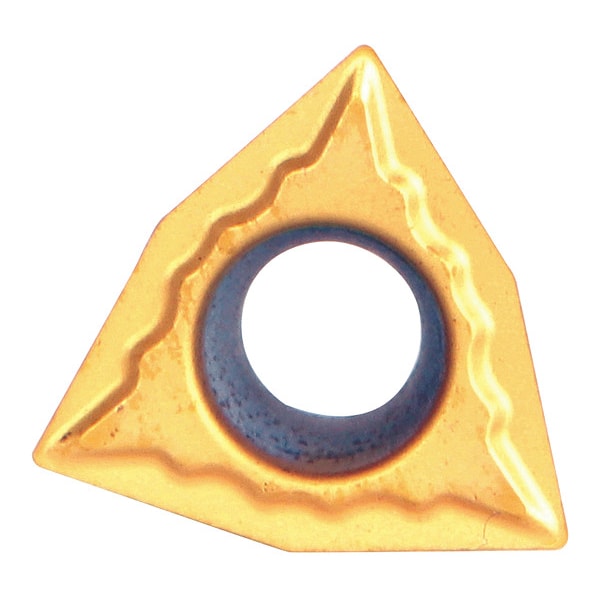

Widia Insert, Trigon, 2, WPGT, .5, Carbide WPGT21505UF CG5 - main

Insert, Trigon, 2, WPGT, .5, Carbide

  • Mfr # WPGT21505UF CG5

  • Zoro # G3873570

product price: $12.69
/ea
Sold in multiples of 10 for $126.90

Key Features

Insert Shape
Trigon
Insert Style
WPGT
Inscribed Circle
2
Insert Size
0.2500"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WPGT21505UF CG5
Zoro #
G3873570
UPC #
4021169380273
Country of Origin
United States

Dimensions

Insert Size
0.2500"
Corner Radius
.5
Insert Thickness
0.0940"
Through Hole Inside Dia.
0.1100 in
Cutting Edge Length
4.34mm
Thickness
1.5

Details

Item
Insert
Insert Shape
Trigon
Insert Style
WPGT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
CG5
Insert Material
Carbide
Rake
Positive
ISO Number
WPGT040202UF
Coating
TiN
Cutting Direction
Neutral
Measurement System
Fractional Inch
Chip-Breaker Code
UF
Finish - Machining
TiN
Secondary Material Application ISO Code
K
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Secondary Material Application
Cast Iron
Material - Machining
Carbide
Chip-Breaker Style
On One Side
ANSI Code
WPGT21505UF
Manufacturer Grade
CG5
Clearance Angle
11 Degrees
Primary Material Application ISO Code
M, N, P, S
Shape
Trigon
Included Angle
80 Degrees
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Number of Cutting Edges
3
Coating Process
PVD
Cutting Application
Outside and Inside Diameter Turning
Material
Carbide

Description

Insert, Chip-Breaker Code UF, Inscribed Circle 1/4 in, TiN
