  11. Insert, Trigon, 2, WPMT, 1, Carbide

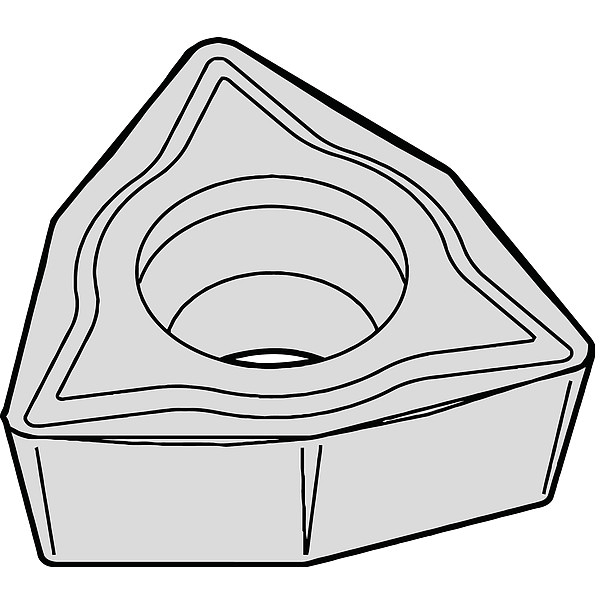

Widia Insert, Trigon, 2, WPMT, 1, Carbide WPMT2151LF CG55 - main

Insert, Trigon, 2, WPMT, 1, Carbide

  • Mfr # WPMT2151LF CG55

  • Zoro # G3876063

product price: $18.99
/ea
Sold in multiples of 5 for $94.95

Key Features

Insert Shape
Trigon
Insert Style
WPMT
Inscribed Circle
2
Insert Size
0.2500"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WPMT2151LF CG55
Zoro #
G3876063
UPC #
4021169380105
Country of Origin
United States

Dimensions

Insert Size
0.2500"
Corner Radius
1
Insert Thickness
0.0938"
Through Hole Inside Dia.
0.1140 in
Thickness
1.5
Cutting Edge Length
4.34mm

Details

Item
Insert
Insert Shape
Trigon
Insert Style
WPMT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
CG55
Insert Material
Carbide
Rake
Positive
ISO Number
WPMT040204LF
Coating
TiN
Cutting Direction
Neutral
Primary Material Application
Stainless Steel
Secondary Material Application ISO Code
K, N, P, S
Included Angle
80 Degrees
Chip-Breaker Style
On One Side
Clearance Angle
11 Degrees
Coating Process
PVD
Finish - Machining
TiN
Cutting Application
Outside and Inside Diameter Turning
Measurement System
Fractional Inch
Shape
Trigon
ANSI Code
WPMT2151LF
Material - Machining
Carbide
Chip-Breaker Code
LF
Manufacturer Grade
CG55
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Steel, Titanium
Number of Cutting Edges
3
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Primary Material Application ISO Code
M
Material
Carbide

Description

Insert, Chip-Breaker Code LF, Inscribed Circle 1/4 in, TiN
