Widia

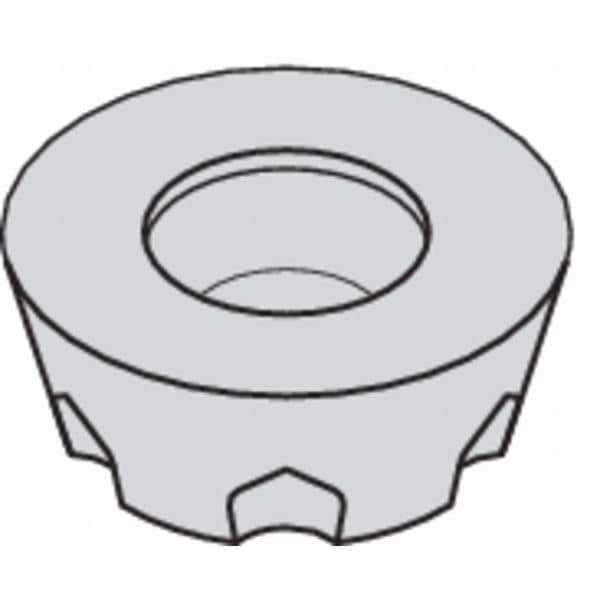

Milling Insert, Round

product price: $10.19
/ea
Sold in multiples of 5 for $50.95
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cast Iron (K) Compatibility Yes
  • Insert Application Medium
  • Coating Al2O3
  • Insert Thickness 0.1875"
  • For Use With M100 Series Copy Mills
See all product information

Product Information

Dimensions

Mounting Hole Dia. 4.45mm
Insert Size 1204M0
Nose Radius 0.236"
Through Hole Inside Dia. 4.45mm
Cutting Edge Length 12.00mm

Details

Cast Iron (K) Compatibility Yes
Insert Application Medium
Coating Al2O3
Insert Thickness 0.1875"
For Use With M100 Series Copy Mills
Non Ferrous (N) Compatibility No
Item Round Milling Insert
ISO Number RDMW1204M0TX
Stainless (M) Compatibility No
Insert Shape Round
Chip-Breaker No
No. of Edges 1
Grade WK15CM
Insert Material Carbide
Cutting Direction Neutral
Insert Style RDMW
Rake Positive
ANSI Number RDMW1204M0TX
Mounting Style Screw Clamp
Steel (P) Compatibility Yes
Super Alloy (S) Compatibility No
Workpiece Compatibility Cast Iron (K), Steel (P)
Inscribed Circle 0.4724 in
Hardened (H) Compatibility No
Series M100
Measurement System Metric
Cutting Application Milling
ANSI Code RDMW1204M0TX
Manufacturer Grade WK15CM
For Toolholder M100D200Z04S075RD12, M100D200Z05S075RD12, M100D300Z07S100RD12
Primary Material Application Cast Iron
Primary Material Application ISO Code K
Cutting Edge T-Land
Material - Machining Carbide
Coating Process CVD
Insert Holding Type Screw Clamp
Shape Round
Number of Cutting Edges 1
Clearance Angle 15 Degrees
Thickness 0.1875 in
Hole Type 40 Degrees to 60 Degrees Countersink Hole
Finish - Machining Al2O3

Description

Round Milling Insert, Inscribed Circle 0.4724 in, Rake Positive
