Widia

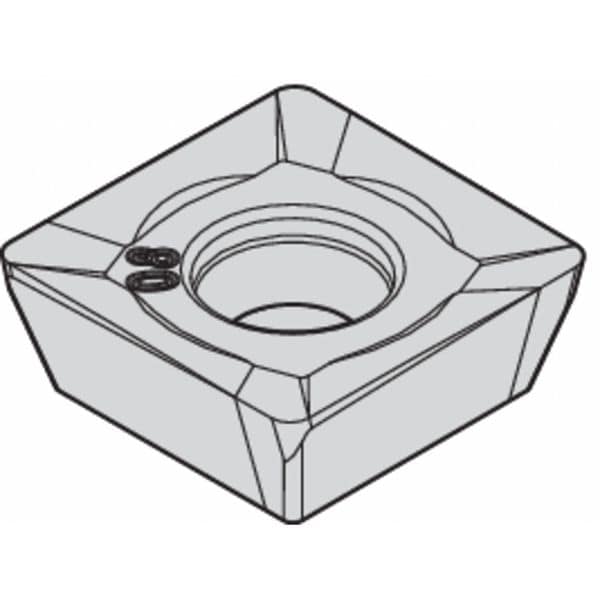

Milling Insert, Square

product price: $15.59
/ea
Sold in multiples of 5 for $77.95
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Shape Square
  • Steel (P) Compatibility No
  • Cast Iron (K) Compatibility No
  • Stainless (M) Compatibility No
  • Coating Uncoated
See all product information

Product Information

Dimensions

Nose Radius 0.031"
Mounting Hole Dia. 0.1730 in
Insert Size 432
Through Hole Inside Dia. 0.1730 in
Cutting Edge Length 12.70mm
Corner Radius 1/32 in

Details

Insert Shape Square
Steel (P) Compatibility No
Cast Iron (K) Compatibility No
Stainless (M) Compatibility No
Coating Uncoated
Insert Style SDEX
Rake 15 Degrees
Grade THM-U
Workpiece Compatibility Nonferrous (N)
Super Alloy (S) Compatibility No
Insert Material Carbide
Inscribed Circle 1/2 in
Lead Angle 90 Degrees
ISO Number SDEX120408FRALP
Non Ferrous (N) Compatibility Yes
Mounting Style Screw Clamp
For Use With M690 Series Shoulder Mills
Cutting Direction Right Hand
Insert Thickness 0.1870"
Insert Application Finishing
Item Square Milling Insert
ANSI Number SDEX432FRALP
No. of Edges 4
Hardened (H) Compatibility No
Chip-Breaker Yes
Series M690
Measurement System Fractional Inch
Finish - Machining Bright (Uncoated)
Primary Material Application ISO Code N
Clearance Angle 15 Degrees
Chip-Breaker Style On One Side
Primary Material Application Aluminum, Brass, Bronze, Copper, Magnesium
Thickness 0.1870 in
Shape Square
Number of Cutting Edges 4
ANSI Code SDEX432FRALP
Manufacturer Grade THM-U
Cutting Application Milling
Included Angle 90 Degrees
Wiper Insert Yes
Insert Holding Type Screw Clamp
Chip-Breaker Code ALP
Material - Machining Carbide

Description

Square Milling Insert, Inscribed Circle 1/2 in, Rake 15 Degrees
