Widia

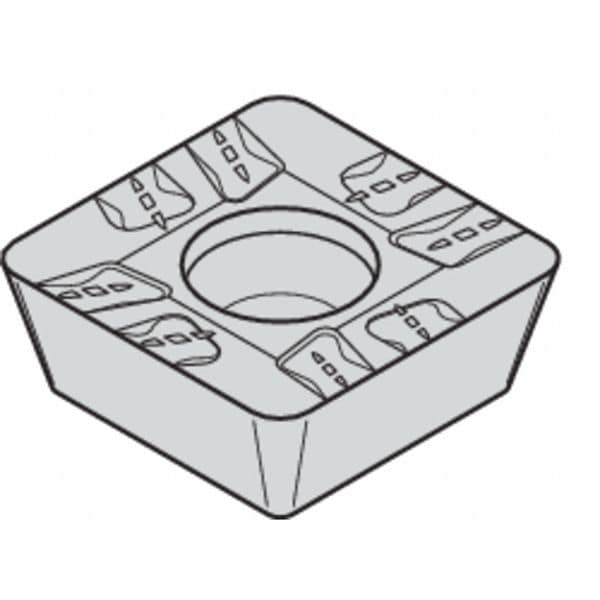

Milling Insert, Square

product price: $14.25
/ea
Sold in multiples of 5 for $71.25
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Thickness 0.189"
  • ANSI Number SDMT43PDRMH
  • Chip-Breaker Yes
  • Nose Radius 0.047"
  • Cutting Direction Right Hand
See all product information

Product Information

Dimensions

Nose Radius 0.047"
Mounting Hole Dia. 0.1730 in
Insert Size 43
Cutting Edge Length 12.70mm
Corner Radius 3/64 in
Through Hole Inside Dia. 0.1730 in

Details

Insert Thickness 0.189"
ANSI Number SDMT43PDRMH
Chip-Breaker Yes
Cutting Direction Right Hand
Insert Shape Square
Insert Style SDMT
Inscribed Circle 1/2 in
Cast Iron (K) Compatibility Yes
ISO Number SDMT1204PDRMH
Non Ferrous (N) Compatibility No
For Use With M390 Series Helical Mills
Hardened (H) Compatibility No
Stainless (M) Compatibility Yes
Mounting Style Screw Clamp
Workpiece Compatibility Cast Iron (K), Stainless (M), Steel (P)
Item Square Milling Insert
Lead Angle 90 Degrees
No. of Edges 4
Insert Application Roughing
Super Alloy (S) Compatibility No
Insert Material Carbide
Steel (P) Compatibility Yes
Rake Positive
Grade TN7535
Coating Al2O3
Series M690
Manufacturer Grade TN7535
Secondary Material Application Cast Iron, Stainless Steel
Clearance Angle 15.3 Degrees
Wiper Insert Yes
Chip-Breaker Style On One Side
Hole Type 40 Degrees to 60 Degrees Countersink Hole
ANSI Code SDMT43PDRMH
Insert Holding Type Screw Clamp
Cutting Application Milling
Secondary Material Application ISO Code K, M
Chip-Breaker Code MH
Material - Machining Carbide
Finish - Machining Al2O3
Included Angle 90 Degrees
Primary Material Application ISO Code P
Measurement System Fractional Inch
Thickness 0.1893 in
Number of Cutting Edges 4
Shape Square
Coating Process CVD
Primary Material Application Steel

Description

Square Milling Insert, Inscribed Circle 1/2 in, Rake Positive
