Widia

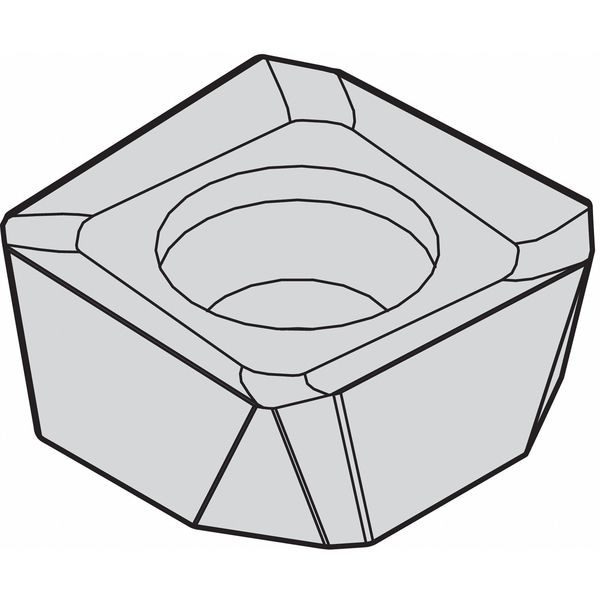

Milling Insert, Square

product price: $16.59
/ea
Sold in multiples of 5 for $82.95
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Application Medium
  • Cutting Direction Right Hand
  • Hardened (H) Compatibility No
  • Insert Shape Square
  • Non Ferrous (N) Compatibility No
See all product information

Product Information

Dimensions

Insert Size 435
Mounting Hole Dia. 0.2165 in
Cutting Edge Length 12.70mm
Through Hole Inside Dia. 0.2165 in

Details

Insert Application Medium
Cutting Direction Right Hand
Hardened (H) Compatibility No
Insert Shape Square
Non Ferrous (N) Compatibility No
For Use With M660 Series Face Mills
ANSI Number SNKT435AZR21
Insert Material Cermet
Item Square Milling Insert
Workpiece Compatibility Stainless (M), Steel (P)
Chip-Breaker Yes
Super Alloy (S) Compatibility No
Stainless (M) Compatibility Yes
Rake Positive
Lead Angle 45 Degrees
No. of Edges 4
Cast Iron (K) Compatibility No
Insert Style SNKT
Mounting Style Screw Clamp
Insert Thickness 0.219"
Inscribed Circle 1/2 in
Grade TTI25
Steel (P) Compatibility Yes
Coating Uncoated
ISO Number SNKT1205AZR21
Series M660
Primary Material Application ISO Code P
Hole Type 40 Degrees to 60 Degrees Countersink Hole
Shape Square
Finish - Machining Bright (Uncoated)
Secondary Material Application Stainless Steel
Number of Cutting Edges 4
Secondary Material Application ISO Code M
Thickness 0.2188 in
ANSI Code SNKT435AZR21
Clearance Angle 0 Degrees
Cutting Application Milling
Insert Holding Type Screw Clamp
Measurement System Fractional Inch
For Toolholder M660D200Z04S075SN12, M660D300Z06S100SN12, M660D400Z07S125SN12, M660D600Z10S150SN12
Chip-Breaker Code 21
Material - Machining Cermet
Chip-Breaker Style On One Side
Included Angle 90 Degrees
Manufacturer Grade TTI25
Primary Material Application Steel

Description

Square Milling Insert, Inscribed Circle 1/2 in, Rake Positive
