  11. NEGATIVE INSERT GEO UR, 3, DNMG, 2

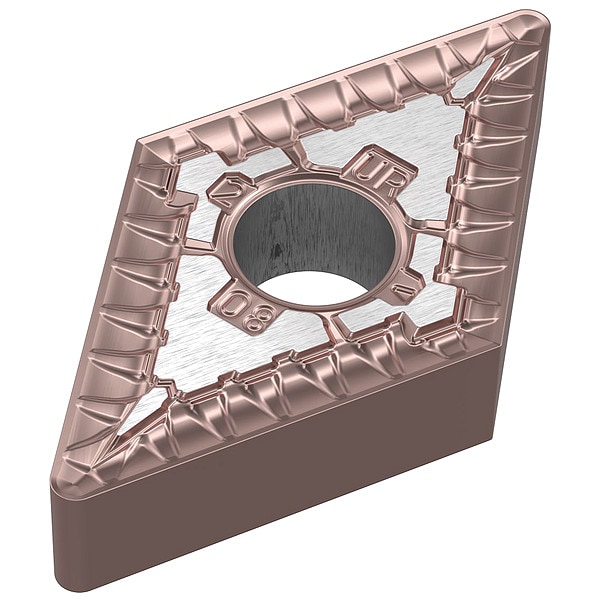

Widia NEGATIVE INSERT GEO UR, 3, DNMG, 2 DNMG332UR WU25PT - main

NEGATIVE INSERT GEO UR, 3, DNMG, 2

  • Mfr # DNMG332UR WU25PT

  • Zoro # G005972712

product price: $8.49
/ea
Sold in multiples of 5 for $42.45

Key Features

Insert Style
DNMG
Inscribed Circle
3
Chip-Breaker
UR
Corner Radius
2
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG332UR WU25PT
Zoro #
G005972712
UPC #
-
Country of Origin
India

Dimensions

Corner Radius
2
Thickness
3
Cutting Edge Length
0.4578 in
Depth of Cut
0.1875 in
Through Hole Inside Dia.
0.15 in

Details

Item
NEGATIVE INSERT GEO UR
Insert Style
DNMG
Inscribed Circle
3
Chip-Breaker
UR
Rake
Negative
ISO Number
DNMG110408UR
Cutting Direction
Neutral
Secondary Material Application ISO Code
K, N
Secondary Material Application
Cast Iron, Non-Ferrous
General Shape
Rhomboid
Primary Material Application ISO Code
M, P, S
Primary Material Application
High-Temperature Alloys, Stainless Steel, Steel
ANSI Code
DNMG332UR
Coating Process
PVD
Material - Machining
Carbide
Finish - Machining
TiAlN
Cutting Application
Roughing
Features
Tough, Ultra-Fine Grain
Material Grade - Machining
Carbide
Manufacturer Grade
WU25PT
Standards
ANSI, ISO
Clearance Angle
0 Degrees
Included Angle
55 Degrees
Number of Cutting Edges
4
Coolant Fed
Non-Coolant Through
Chip-Breaker Code
UR
Insert Holding Type
2-Cylindrical Fixing Hole
Measurement System
Decimal Inch
Shape
Rhomboid

Description

NEGATIVE INSERT GEO UR, Chip-Breaker Code UR, Inscribed Circle 0.375 in, TiAlN, ANSI Code DNMG332UR, Clearance Angle 0 Degrees , Coating Process PVD
