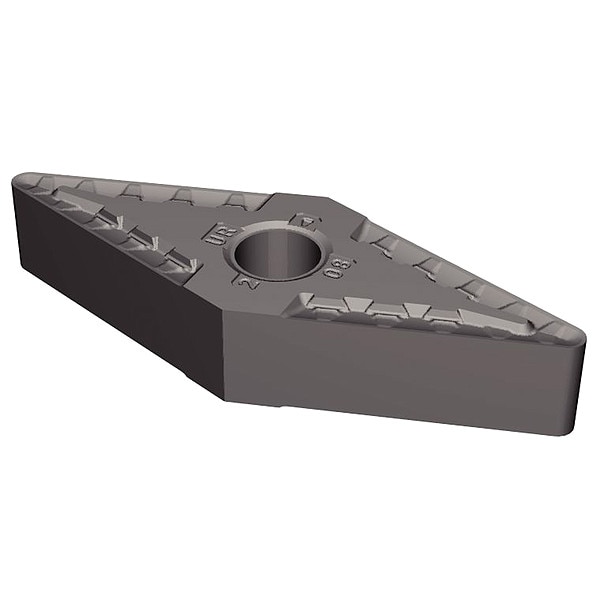

Widia NEGATIVE INSERT GEO UR, 3, VNMG, 2 VNMG332UR WU25PT - main

NEGATIVE INSERT GEO UR, 3, VNMG, 2

  • Mfr # VNMG332UR WU25PT

  • Zoro # G805972677

product price: $9.99
/ea
Sold in multiples of 5 for $49.95

Key Features

Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
UR
Corner Radius
2
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNMG332UR WU25PT
Zoro #
G805972677
UPC #
-
Country of Origin
India

Dimensions

Corner Radius
2
Thickness
3
Through Hole Inside Dia.
0.15 in
Depth of Cut
0.1875 in
Cutting Edge Length
0.6538 in

Details

Item
NEGATIVE INSERT GEO UR
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
UR
Rake
Negative
ISO Number
VNMG160408UR
Cutting Direction
Neutral
Material - Machining
Carbide
Included Angle
35 Degrees
Manufacturer Grade
WU25PT
Clearance Angle
0 Degrees
Cutting Application
Roughing
Features
Tough, Ultra-Fine Grain
Number of Cutting Edges
4
Insert Holding Type
2-Cylindrical Fixing Hole
Secondary Material Application
Cast Iron, Non-Ferrous
Primary Material Application
High-Temperature Alloys, Stainless Steel, Steel
Chip-Breaker Code
UR
General Shape
Rhomboid
Finish - Machining
TiAlN
Measurement System
Decimal Inch
Coating Process
PVD
Standards
ANSI, ISO
Coolant Fed
Non-Coolant Through
Secondary Material Application ISO Code
K, N
ANSI Code
VNMG332UR
Primary Material Application ISO Code
M, P, S
Shape
Rhomboid
Material Grade - Machining
Carbide

Description

NEGATIVE INSERT GEO UR, Chip-Breaker Code UR, Inscribed Circle 0.375 in, TiAlN, ANSI Code VNMG332UR, Clearance Angle 0 Degrees , Coating Process PVD
