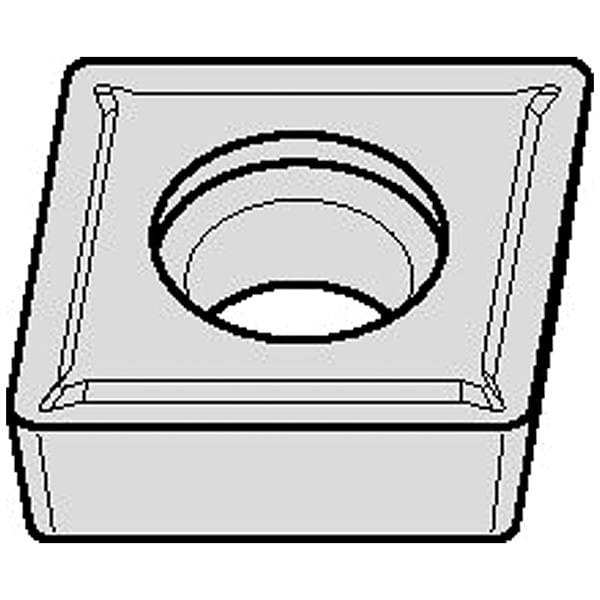

Widia POSITIVE INSERT GEO 1P, 3, CCMT, 2 CCMT32521P WU25PT - main

POSITIVE INSERT GEO 1P, 3, CCMT, 2

  • Mfr # CCMT32521P WU25PT

  • Zoro # G905972683

product price: $5.39
/ea
Sold in multiples of 5 for $26.95

Key Features

Insert Style
CCMT
Inscribed Circle
3
Corner Radius
2
Rake
Positive
ISO Number
CCMT09T3081P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCMT32521P WU25PT
Zoro #
G905972683
UPC #
-
Country of Origin
India

Dimensions

Corner Radius
2
Thickness
2.5
Cutting Edge Length
0.3808 in
Through Hole Inside Dia.
0.1732 in
Depth of Cut
0.1563 in

Details

Item
POSITIVE INSERT GEO 1P
Insert Style
CCMT
Inscribed Circle
3
Rake
Positive
ISO Number
CCMT09T3081P
Cutting Direction
Neutral
Primary Material Application
High-Temperature Alloys, Stainless Steel, Steel
Clearance Angle
7 Degrees
Secondary Material Application ISO Code
K, N
Finish - Machining
TiAlN
Measurement System
Decimal Inch
Included Angle
80 Degrees
Coolant Fed
Non-Coolant Through
Features
Tough, Ultra-Fine Grain
Secondary Material Application
Cast Iron, Non-Ferrous
Material Grade - Machining
Carbide
Cutting Application
Finishing
Number of Cutting Edges
4
Coating Process
PVD
Primary Material Application ISO Code
M, P, S
Insert Holding Type
3-Part Cycl w/40-60 TaperScrew
Manufacturer Grade
WU25PT
Chip-Breaker Code
1P
ANSI Code
CCMT32521P
General Shape
Rhomboid
Standards
ANSI, ISO
Material - Machining
Carbide
Shape
Rhomboid

Description

POSITIVE INSERT GEO 1P, Chip-Breaker Code 1P, Inscribed Circle 0.375 in, TiAlN, ANSI Code CCMT32521P, Clearance Angle 7 Degrees , Coating Process PVD
