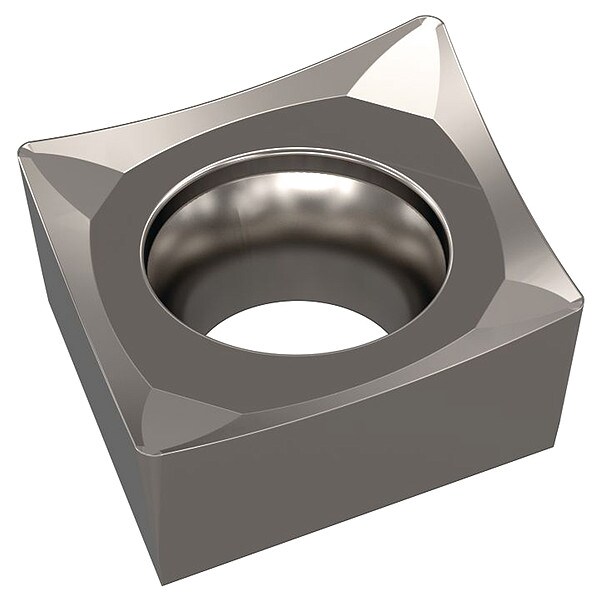

Widia POSITIVE INSERT GEO AL, 2, CCGT, 2 CCGT2152AL WU05PT - main

POSITIVE INSERT GEO AL, 2, CCGT, 2

  • Mfr # CCGT2152AL WU05PT

  • Zoro # G405972701

product price: $15.39
/ea
Sold in multiples of 5 for $76.95

Key Features

Insert Style
CCGT
Inscribed Circle
2
Corner Radius
2
Rake
Positive
ISO Number
CCGT060208AL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCGT2152AL WU05PT
Zoro #
G405972701
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
2
Depth of Cut
0.0938 in
Cutting Edge Length
0.2539 in
Through Hole Inside Dia.
0.1102 in
Thickness
1.5

Details

Item
POSITIVE INSERT GEO AL
Insert Style
CCGT
Inscribed Circle
2
Rake
Positive
ISO Number
CCGT060208AL
Cutting Direction
Neutral
Primary Material Application
Non-Ferrous
Secondary Material Application ISO Code
K, M, P, S
Coolant Fed
Non-Coolant Through
Material Grade - Machining
Carbide
Material - Machining
Carbide
Finish - Machining
AlTiN
Manufacturer Grade
WU05PT
Insert Holding Type
3-Part Cycl w/40-60 TaperScrew
General Shape
Rhomboid
Cutting Application
Boring, Chamfering, Facing, Profiling, Turning
Primary Material Application ISO Code
N
Standards
ANSI, ISO
Chip-Breaker Code
AL
ANSI Code
CCGT2152AL
Secondary Material Application
Cast Iron, High-Temperature Alloys, Stainless Steel, Steel
Coating Process
PVD
Shape
Rhomboid
Clearance Angle
7 Degrees
Measurement System
Decimal Inch
Features
Highly Wear Resistance
Number of Cutting Edges
2
Included Angle
80 Degrees

Description

POSITIVE INSERT GEO AL, Chip-Breaker Code AL, Inscribed Circle 0.25 in, AlTiN, ANSI Code CCGT2152AL, Clearance Angle 7 Degrees , Coating Process PVD
