  11. POSITIVE INSERT GEO AL, 3, DCGT, 2

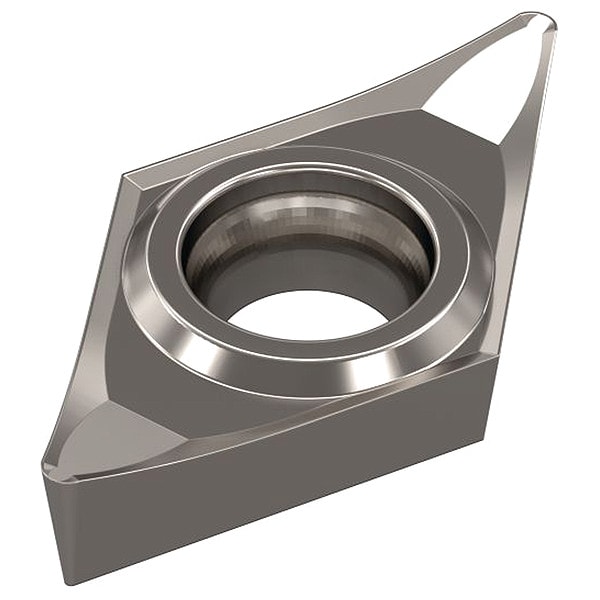

Widia POSITIVE INSERT GEO AL, 3, DCGT, 2 DCGT3252AL WU05PT - main

POSITIVE INSERT GEO AL, 3, DCGT, 2

  • Mfr # DCGT3252AL WU05PT

  • Zoro # G005972682

product price: $18.89
/ea
Sold in multiples of 5 for $94.45

Key Features

Insert Style
DCGT
Inscribed Circle
3
Corner Radius
2
Rake
Positive
ISO Number
DCGT11T308AL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCGT3252AL WU05PT
Zoro #
G005972682
UPC #
-
Country of Origin
United States

Dimensions

Corner Radius
2
Cutting Edge Length
0.4565 in
Through Hole Inside Dia.
0.1732 in
Depth of Cut
0.1563 in
Thickness
2.5

Details

Item
POSITIVE INSERT GEO AL
Insert Style
DCGT
Inscribed Circle
3
Rake
Positive
ISO Number
DCGT11T308AL
Cutting Direction
Neutral
Shape
Rhomboid
Secondary Material Application ISO Code
K, M, P, S
Manufacturer Grade
WU05PT
Included Angle
55 Degrees
Chip-Breaker Code
AL
Number of Cutting Edges
2
Features
Highly Wear Resistance
Clearance Angle
7 Degrees
Measurement System
Decimal Inch
Cutting Application
Boring, Chamfering, Facing, Profiling, Turning
Primary Material Application ISO Code
N
Standards
ANSI, ISO
ANSI Code
DCGT3252AL
Finish - Machining
AlTiN
Primary Material Application
Non-Ferrous
Secondary Material Application
Cast Iron, High-Temperature Alloys, Stainless Steel, Steel
Material Grade - Machining
Carbide
Insert Holding Type
3-Part Cycl w/40-60 TaperScrew
Coating Process
PVD
Coolant Fed
Non-Coolant Through
General Shape
Rhomboid
Material - Machining
Carbide

Description

Positive Insert
