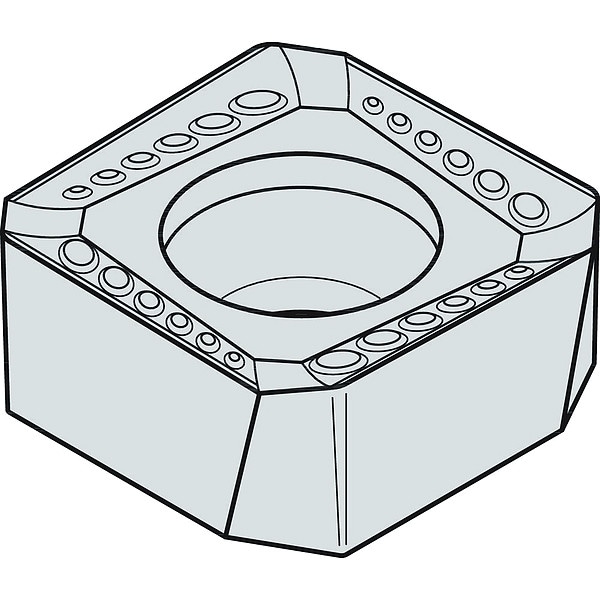

Widia Square Milling Insert SNMT535AZR31 WP35CM - main

Square Milling Insert

  • Mfr # SNMT535AZR31 WP35CM

  • Zoro # G610414126

product price: $23.19
/ea
Sold in multiples of 5 for $115.95

Key Features

For Use With
M660 Series Face Mills
Insert Size
535
Inscribed Circle
0.625 in
Rake
Positive
Lead Angle
45 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMT535AZR31 WP35CM
Zoro #
G610414126
UPC #
4064182707450
Country of Origin
China

Dimensions

Insert Size
535
Thickness
0.2187 in
Cutting Edge Length
0.6250 in

Details

Item
Square Milling Insert
For Use With
M660 Series Face Mills
Inscribed Circle
0.625 in
Rake
Positive
Lead Angle
45 Degrees
ISO Number
SNMT1505AZR31
Insert Style
SNMT
Chip-Breaker
Yes
Primary Material Application
Stainless Steel, Steel
Manufacturer Grade
WP35CM
Number of Cutting Edges
4
Features
Reliability and High MRR Capability
ANSI Code
SNMT535AZR31
Secondary Material Application
Cast Iron, High-Temperature Alloy
Cutting Application
Milling
Finish - Machining
TiN+TiCN+Al2O3
Secondary Material Application ISO Code
K, S
Coating Process
CVD
Primary Material Application ISO Code
M, P
Material - Machining
Carbide
Measurement System
Decimal Inch
Shape
Square
Wiper Insert
Yes

Description

Square Milling Insert, Inscribed Circle 0.625 in, Rake Positive
