  11. Square Turning Insert, Square, 3, SNMG, 2, Carbide

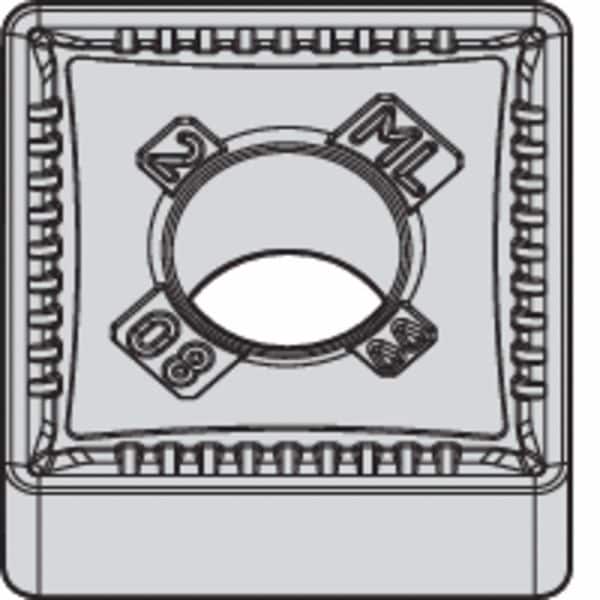

Widia Square Turning Insert, Square, 3, SNMG, 2, Carbide SNMG322ML WP15CT - main

Square Turning Insert, Square, 3, SNMG, 2, Carbide

  • Mfr # SNMG322ML WP15CT

  • Zoro # G2812387

product price: $6.19
/ea
Sold in multiples of 10 for $61.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
3
Insert Size
322
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG322ML WP15CT
Zoro #
G2812387
UPC #
-
Country of Origin
India

Dimensions

Insert Size
322
Corner Radius
2
Nose Radius
0.031"
Insert Thickness
0.1250"
Mounting Hole Dia.
0.150"
Thickness
1/8 in
Cutting Edge Length
9.52mm

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WP15CT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
SNMG090308ML
Cast Iron (K) Compatibility
Yes
Mounting Style
Clamp
Workpiece Compatibility
Cast Iron (K), Steel (P)
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
ANSI Number
SNMG322ML
Super Alloy (S) Compatibility
No
Coating
Tin
No. of Edges
8
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
Yes
Relief Angle
0 Degrees
Stainless (M) Compatibility
No
Hardened (H) Compatibility
No
Included Angle
90 Degrees
Secondary Material Application
Cast Iron
Shape
Square
Clearance Angle
0 Degrees
Coating Process
CVD
ANSI Code
SNMG322ML
Cutting Application
Turning
Measurement System
Fractional Inch
Finish - Machining
TiN
Manufacturer Grade
WP15CT
Number of Cutting Edges
8
Material - Machining
Carbide
Insert Holding Type
Straight Hole
Chip-Breaker Code
ML
Primary Material Application
Steel
Primary Material Application ISO Code
P
Chip-Breaker Style
Double Sided
Secondary Material Application ISO Code
K
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code ML, Inscribed Circle 3/8 in, TiN
