  11. Square Turning Insert, Square, 4, SCMT, 2, Carbide

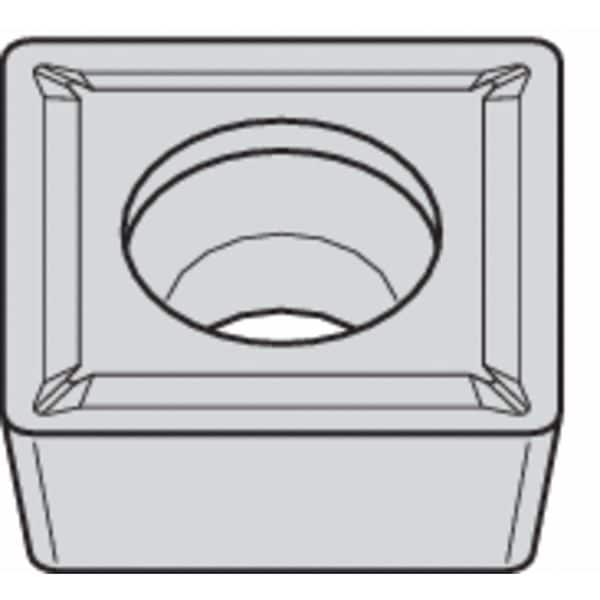

Widia Square Turning Insert, Square, 4, SCMT, 2, Carbide SCMT4321P TN20K - main

Square Turning Insert, Square, 4, SCMT, 2, Carbide

  • Mfr # SCMT4321P TN20K

  • Zoro # G2911111

product price: $11.69
/ea
Sold in multiples of 5 for $58.45

Key Features

Insert Shape
Square
Insert Style
SCMT
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SCMT4321P TN20K
Zoro #
G2911111
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.217"
Nose Radius
0.031"
Insert Thickness
0.1875"
Cutting Edge Length
12.70mm
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SCMT
Inscribed Circle
4
Chip-Breaker
Yes
Grade
TN20K
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
SCMT1204081P
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
Relief Angle
7 Degrees
Steel (P) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Steel (P)
ANSI Number
SCMT4321P
Coating
Tin
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
No. of Edges
4
Mounting Style
Screw
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
No
Primary Material Application ISO Code
K
Material - Machining
Carbide
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
ANSI Code
SCMT4321P
Cutting Application
Turning
Shape
Square
Primary Material Application
Cast Iron
Finish - Machining
TiN
Clearance Angle
7 Degrees
Number of Cutting Edges
4
Chip-Breaker Code
1P
Measurement System
Fractional Inch
Included Angle
90 Degrees
Secondary Material Application ISO Code
P
Chip-Breaker Style
On One Side
Secondary Material Application
Steel
Manufacturer Grade
TN20K
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code 1P, Inscribed Circle 1/2 in, TiN
