  11. Square Turning Insert, Square, 4, SNGX, 3, Ceramic

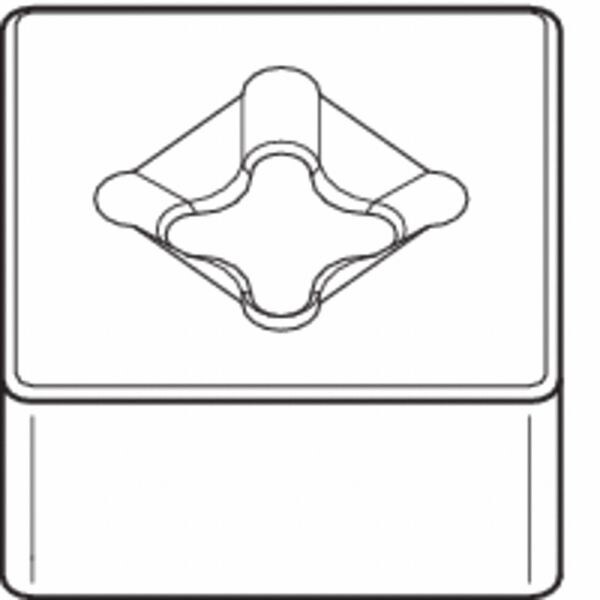

Widia Square Turning Insert, Square, 4, SNGX, 3, Ceramic SNGX453T0820 CW5025 - main

Square Turning Insert, Square, 4, SNGX, 3, Ceramic

  • Mfr # SNGX453T0820 CW5025

  • Zoro # G2908829

product price: $27.79
/ea
Sold in multiples of 5 for $138.95

Key Features

Insert Shape
Square
Insert Style
SNGX
Inscribed Circle
4
Insert Size
453
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNGX453T0820 CW5025
Zoro #
G2908829
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
453
Corner Radius
3
Nose Radius
0.047"
Insert Thickness
0.3125"
Thickness
5/16 in
Cutting Edge Length
12.70mm

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNGX
Inscribed Circle
4
Chip-Breaker
No
Grade
CW5025
Insert Material
Ceramic
Insert Application
Medium
Rake
Negative
ISO Number
SNGX120712T02020
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
No
Cast Iron (K) Compatibility
Yes
Coating
Uncoated
Mounting Style
Clamp
Super Alloy (S) Compatibility
No
ANSI Number
SNGX453T0820
Relief Angle
0 Degrees
Steel (P) Compatibility
No
Hardened (H) Compatibility
No
No. of Edges
8
Workpiece Compatibility
Cast Iron (K)
Cutting Direction
Neutral
ANSI Code
SNGX453T0820
Material - Machining
Ceramic
Material Grade - Machining
Silicon Nitride Ceramic
Manufacturer Grade
CW5025
Finish - Machining
Bright (Uncoated)
Insert Holding Type
Notch Clamping
Cutting Application
Turning
Shape
Square
Clearance Angle
0 Degrees
Number of Cutting Edges
8
Measurement System
Fractional Inch
Included Angle
90 Degrees
Material
Ceramic

Description

Square Turning Insert, Inscribed Circle 1/2 in, Bright (Uncoated)
