  11. Square Turning Insert, Square, 4, SNMG, 1, Carbide

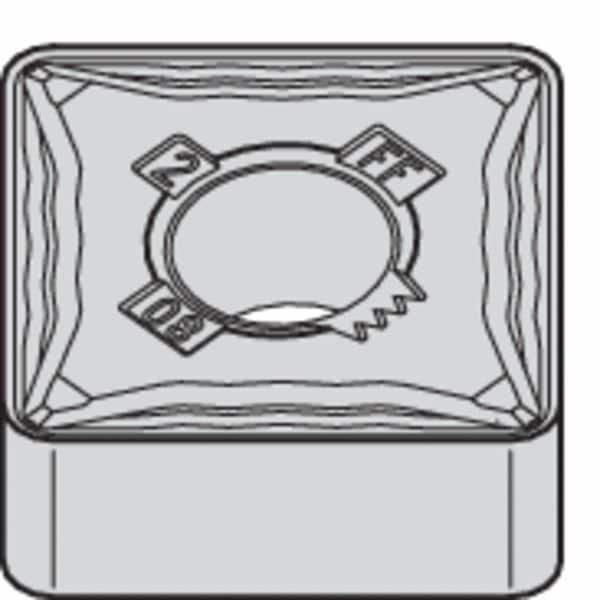

Widia Square Turning Insert, Square, 4, SNMG, 1, Carbide SNMG431FF WP15CT - main

Square Turning Insert, Square, 4, SNMG, 1, Carbide

  • Mfr # SNMG431FF WP15CT

  • Zoro # G2812253

product price: $7.59
/ea
Sold in multiples of 10 for $75.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG431FF WP15CT
Zoro #
G2812253
UPC #
-
Country of Origin
India

Dimensions

Insert Size
431
Corner Radius
1
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.016"
Cutting Edge Length
12.70mm
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WP15CT
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
SNMG120404FF
Stainless (M) Compatibility
No
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Mounting Style
Clamp
Cutting Direction
Neutral
No. of Edges
8
Coating
Tin
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Steel (P)
ANSI Number
SNMG431FF
Relief Angle
0 Degrees
Super Alloy (S) Compatibility
No
For Use With
Toolholders, Boring Bars
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
Primary Material Application ISO Code
P
Material - Machining
Carbide
Secondary Material Application ISO Code
K
Number of Cutting Edges
8
Primary Material Application
Steel
Coating Process
CVD
Cutting Application
Turning
Finish - Machining
TiN
Included Angle
90 Degrees
Clearance Angle
0 Degrees
Shape
Square
ANSI Code
SNMG431FF
Chip-Breaker Style
Double Sided
Chip-Breaker Code
FF
Manufacturer Grade
WP15CT
Secondary Material Application
Cast Iron
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code FF, Inscribed Circle 1/2 in, TiN
