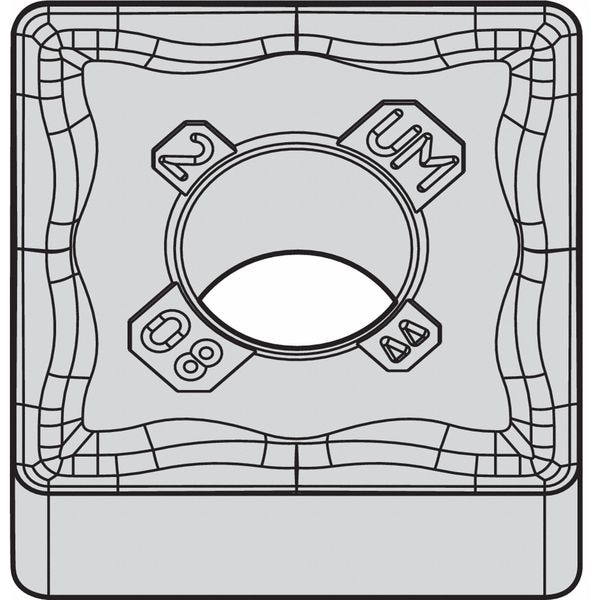

Widia Square Turning Insert, Square, 4, SNMG, 1, Carbide SNMG431UM WM25CT - main

Square Turning Insert, Square, 4, SNMG, 1, Carbide

  • Mfr # SNMG431UM WM25CT

  • Zoro # G2815537

product price: $7.59
/ea
Sold in multiples of 10 for $75.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG431UM WM25CT
Zoro #
G2815537
UPC #
-
Country of Origin
India

Dimensions

Insert Size
431
Corner Radius
1
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.016"
Thickness
3/16 in
Cutting Edge Length
12.70mm

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WM25CT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
SNMG120404UM
Coating
Tin
No. of Edges
8
ANSI Number
SNMG431UM
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
Yes
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
Yes
Mounting Style
Clamp
Relief Angle
0 Degrees
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Cutting Application
Turning
Secondary Material Application ISO Code
P, S
Primary Material Application
Stainless Steel
Measurement System
Fractional Inch
Primary Material Application ISO Code
M
Chip-Breaker Code
UM
Coating Process
CVD
Chip-Breaker Style
Double Sided
Manufacturer Grade
WM25CT
ANSI Code
SNMG431UM
Finish - Machining
TiN
Number of Cutting Edges
8
Material - Machining
Carbide
Secondary Material Application
Nickel, Steel, Titanium
Insert Holding Type
Straight Hole
Clearance Angle
0 Degrees
Shape
Square
Included Angle
90 Degrees
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code UM, Inscribed Circle 1/2 in, TiN
