  11. Square Turning Insert, Square, 4, SNMG, 2, Carbide

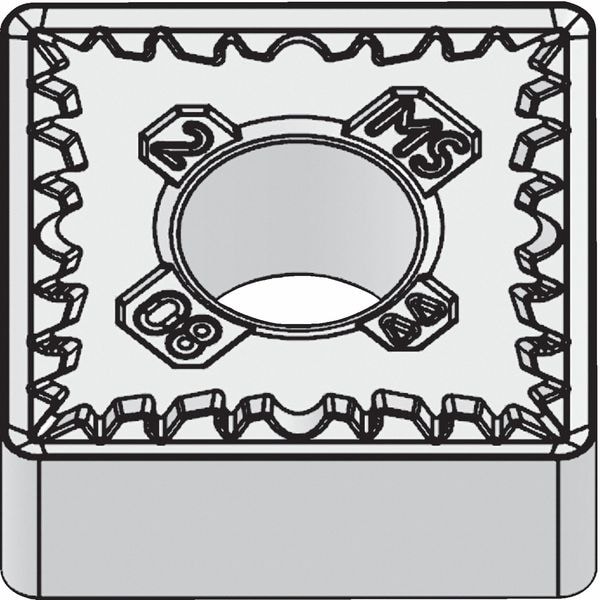

Widia Square Turning Insert, Square, 4, SNMG, 2, Carbide SNMG432MS WU10HT - main

Square Turning Insert, Square, 4, SNMG, 2, Carbide

  • Mfr # SNMG432MS WU10HT

  • Zoro # G2818431

product price: $13.19
/ea
Sold in multiples of 5 for $65.95

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG432MS WU10HT
Zoro #
G2818431
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.031"
Cutting Edge Length
12.70mm
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WU10HT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
SNMG120408MS
Mounting Style
Clamp
Cutting Direction
Neutral
Cast Iron (K) Compatibility
No
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Relief Angle
0 Degrees
Super Alloy (S) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
ANSI Number
SNMG432MS
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
No. of Edges
8
Coating
Uncoated
Clearance Angle
0 Degrees
Material - Machining
Carbide
Number of Cutting Edges
8
Chip-Breaker Code
MS
Chip-Breaker Style
Double Sided
Primary Material Application
Nickel, Stainless Steel, Titanium
Secondary Material Application
Aluminum, Brass, Bronze, Copper, Steel
Measurement System
Fractional Inch
Secondary Material Application ISO Code
N, P
Cutting Application
Turning
Finish - Machining
Bright (Uncoated)
ANSI Code
SNMG432MS
Insert Holding Type
Straight Hole
Included Angle
90 Degrees
Shape
Square
Manufacturer Grade
WU10HT
Primary Material Application ISO Code
M, S
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code MS, Inscribed Circle 1/2 in, Bright (Uncoated)
