  11. Square Turning Insert, Square, 4, SNMP, 3, Carbide

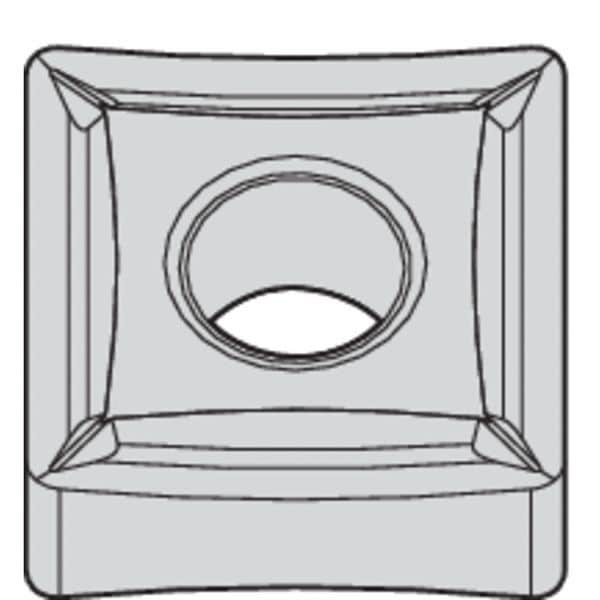

Widia Square Turning Insert, Square, 4, SNMP, 3, Carbide SNMP433 WS25PT - main

Square Turning Insert, Square, 4, SNMP, 3, Carbide

  • Mfr # SNMP433 WS25PT

  • Zoro # G2815878

product price: $13.99
/ea
Sold in multiples of 5 for $69.95

Key Features

Insert Shape
Square
Insert Style
SNMP
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMP433 WS25PT
Zoro #
G2815878
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
433
Corner Radius
3
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.047"
Thickness
3/16 in
Cutting Edge Length
12.70mm

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMP
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WS25PT
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
SNMP120412
For Use With
Toolholders, Boring Bars
ANSI Number
SNMP433
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Relief Angle
0 Degrees
Super Alloy (S) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Coating
ALOX-SN
No. of Edges
8
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
Mounting Style
Clamp
Primary Material Application ISO Code
M, S
Measurement System
Fractional Inch
Feed Type
High
Primary Material Application
Nickel, Stainless Steel, Titanium
Cutting Application
Turning
Coating Process
PVD
ANSI Code
SNMP433
Secondary Material Application ISO Code
K, N, P
Included Angle
90 Degrees
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Number of Cutting Edges
8
Material - Machining
Carbide
Manufacturer Grade
WS25PT
Shape
Square
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Chip-Breaker Style
Double Sided
Material
Carbide

Description

Square Turning Insert, Inscribed Circle 1/2 in
