  11. Square Turning Insert, Square, 4, SPMT, 2, Carbide

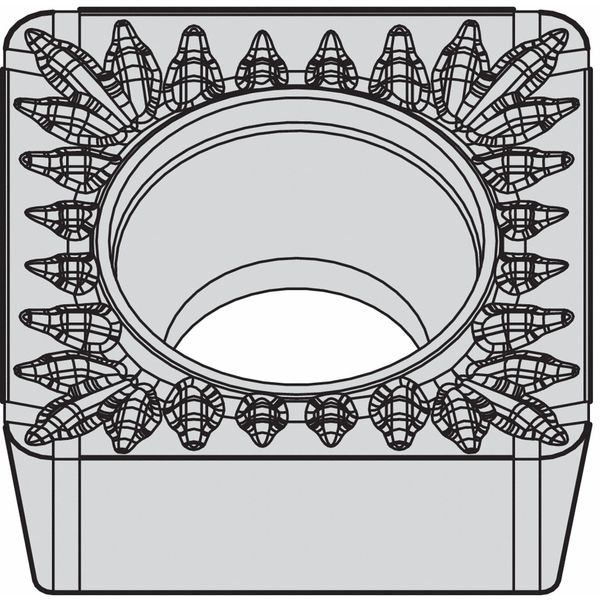

Widia Square Turning Insert, Square, 4, SPMT, 2, Carbide SPMT432MP WK20CT - main

Square Turning Insert, Square, 4, SPMT, 2, Carbide

  • Mfr # SPMT432MP WK20CT

  • Zoro # G2810199

product price: $10.69
/ea
Sold in multiples of 5 for $53.45

Key Features

Insert Shape
Square
Insert Style
SPMT
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPMT432MP WK20CT
Zoro #
G2810199
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.217"
Nose Radius
0.031"
Insert Thickness
0.1875"
Cutting Edge Length
12.70mm
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SPMT
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WK20CT
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
SPMT120408MP
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Steel (P)
Relief Angle
11 Degrees
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
No. of Edges
4
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
Mounting Style
Screw
ANSI Number
SPMT432MP
Stainless (M) Compatibility
No
Non Ferrous (N) Compatibility
No
Coating
Tin
Super Alloy (S) Compatibility
No
Secondary Material Application ISO Code
P
Finish - Machining
TiN
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Material - Machining
Carbide
Coating Process
CVD
Clearance Angle
11 Degrees
Number of Cutting Edges
4
Chip-Breaker Style
On One Side
Included Angle
90 Degrees
Secondary Material Application
Steel
Shape
Square
Manufacturer Grade
WK20CT
Primary Material Application
Cast Iron
Primary Material Application ISO Code
K
Measurement System
Fractional Inch
Cutting Application
Turning
ANSI Code
SPMT432MP
Chip-Breaker Code
MP
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code MP, Inscribed Circle 1/2 in, TiN
