  11. Square Turning Insert, Square, 5, SNMG, 3, Carbide

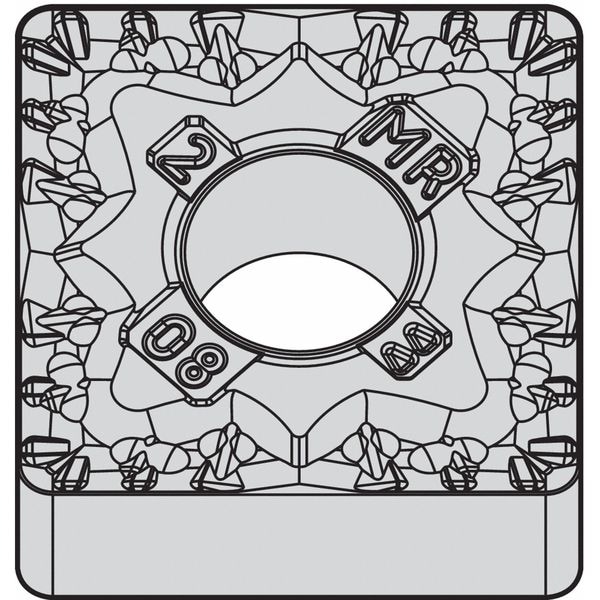

Widia Square Turning Insert, Square, 5, SNMG, 3, Carbide SNMG543MR WP15CT - main

Square Turning Insert, Square, 5, SNMG, 3, Carbide

  • Mfr # SNMG543MR WP15CT

  • Zoro # G2813750

product price: $13.69
/ea
Sold in multiples of 10 for $136.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
5
Insert Size
SNMG 322-1
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG543MR WP15CT
Zoro #
G2813750
UPC #
-
Country of Origin
India

Dimensions

Insert Size
SNMG 322-1
Corner Radius
3
Mounting Hole Dia.
0.250"
Nose Radius
0.047"
Insert Thickness
0.2500"
Cutting Edge Length
15.88mm
Thickness
1/4 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
WP15CT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
SNMG150612MR
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Steel (P)
Coating
Tin
Relief Angle
0 Degrees
Hardened (H) Compatibility
No
Cutting Direction
Neutral
Stainless (M) Compatibility
No
Cast Iron (K) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Mounting Style
Clamp
No. of Edges
8
Steel (P) Compatibility
Yes
ANSI Number
SNMG543MR
Insert Holding Type
Straight Hole
Number of Cutting Edges
8
Secondary Material Application ISO Code
K
Shape
Square
Primary Material Application ISO Code
P
Coating Process
CVD
ANSI Code
SNMG543MR
Manufacturer Grade
WP15CT
Chip-Breaker Code
MR
Secondary Material Application
Cast Iron
Material - Machining
Carbide
Clearance Angle
0 Degrees
Cutting Application
Turning
Finish - Machining
TiN
Primary Material Application
Steel
Chip-Breaker Style
Double Sided
Measurement System
Fractional Inch
Included Angle
90 Degrees
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code MR, Inscribed Circle 5/8 in, TiN
