  11. Square Turning Insert, Square, 6, SNMM, 6, Carbide

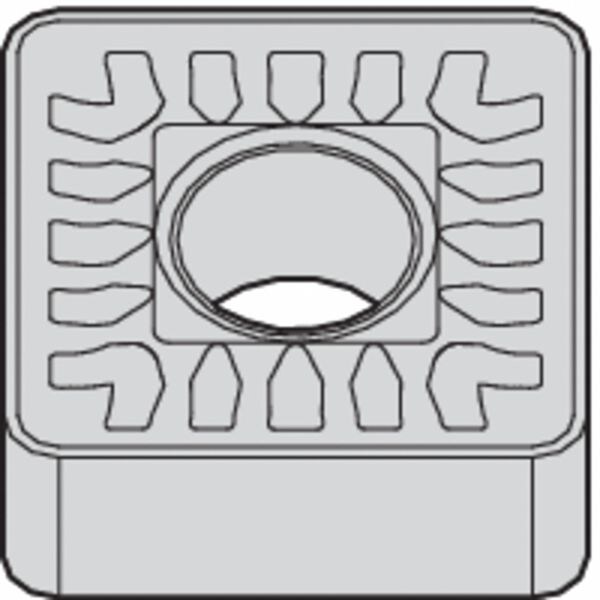

Widia Square Turning Insert, Square, 6, SNMM, 6, Carbide SNMM646SR WP25CT - main

Square Turning Insert, Square, 6, SNMM, 6, Carbide

  • Mfr # SNMM646SR WP25CT

  • Zoro # G7681060

product price: $29.19
/ea
Sold in multiples of 5 for $145.95

Key Features

Insert Shape
Square
Insert Style
SNMM
Inscribed Circle
6
Insert Size
646
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SNMM646SR WP25CT
Zoro #
G7681060
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
646
Corner Radius
6
Nose Radius
0.094"
Mounting Hole Dia.
0.313"
Insert Thickness
0.2500"
Cutting Edge Length
19.05mm
Thickness
1/4 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMM
Inscribed Circle
6
Chip-Breaker
Yes
Grade
WP25CT
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
SNMM190624SR
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Steel (P)
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
No. of Edges
4
Coating
Tin
Mounting Style
Clamp
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
Relief Angle
0 Degrees
ANSI Number
SNMM646SR
Secondary Material Application ISO Code
K
Manufacturer Grade
WP25CT
Cutting Application
Turning
Clearance Angle
0 Degrees
Secondary Material Application
Cast Iron
Included Angle
90 Degrees
Measurement System
Fractional Inch
Number of Cutting Edges
4
Shape
Square
Chip-Breaker Code
SR
ANSI Code
SNMM646SR
Material - Machining
Carbide
Insert Holding Type
Straight Hole
Coating Process
CVD
Finish - Machining
TiN
Chip-Breaker Style
On One Side
Primary Material Application
Steel
Primary Material Application ISO Code
P
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code SR, Inscribed Circle 3/4 in, TiN
