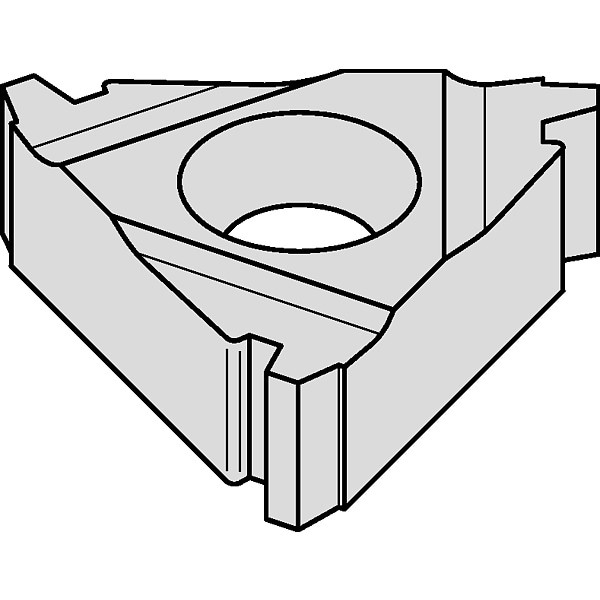

Widia Threading Insert, 4ER, Triangle 4ER5TR - main

Threading Insert, 4ER, Triangle

  • Mfr # 4ER5TR

  • Zoro # G3874085

product price: $42.89
/ea
Sold in multiples of 10 for $428.90

Key Features

Thread Type
Trapezoid DIN 103
Style
Trapez
Insert Size
4
Chip-Breaker
Yes
Grade
TN6025
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4ER5TR
Zoro #
G3874085
UPC #
4021169189708
Country of Origin
Israel

Dimensions

Insert Size
4
Insert Length
22.00mm
Thread Height Difference
2.10mm

Details

Item
Threading Insert
Thread Type
Trapezoid DIN 103
Style
Trapez
Chip-Breaker
Yes
Grade
TN6025
Cutting Direction
Right Hand
Insert Shape
Triangle
Inscribed Circle
1/2 in
ISO Number
4ER5TR
Insert Type
4ER
Thread Standard
Trapezoid DIN 103
Coating Process
PVD
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Cutting Application
Turning
Feed Type
High
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Threading Location
External
Manufacturer Grade
TN6025
Included Angle
30 Degrees
Measurement System
Metric
Thread Direction
Right Hand
Material - Machining
Carbide
Number of Cutting Edges
3
ANSI Code
4ER5TR
Thread Pitch
5.00mm
Secondary Material Application ISO Code
N
Side-to-Cutting Tip
2.50mm
Chip-Breaker Style
One Side
Insert Style
4ER
Primary Material Application ISO Code
K, M, P, S
Finish - Machining
AlTiN
Insert Holding Type
1/2 in

Description

Threading Insert, 4ER, External, Cutting Direction Right Hand, Trapezoid DIN 103, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium, Inscribed Circle 1/2 in
