Widia

Threading Tool, Carbide

Hover or click to zoom Tap to zoom
Key Features
  • Item: Threading Tool
  • Style: ATD
  • Grade: CG5
  • Cutting Direction: Right Hand
  • Coolant Fed: Coolant Through
  • Min. Thread Pitch: 1.27mm
  • Cutter Material: Carbide
  • Max. Threads per Inch: 48
See full product details
$62.15
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

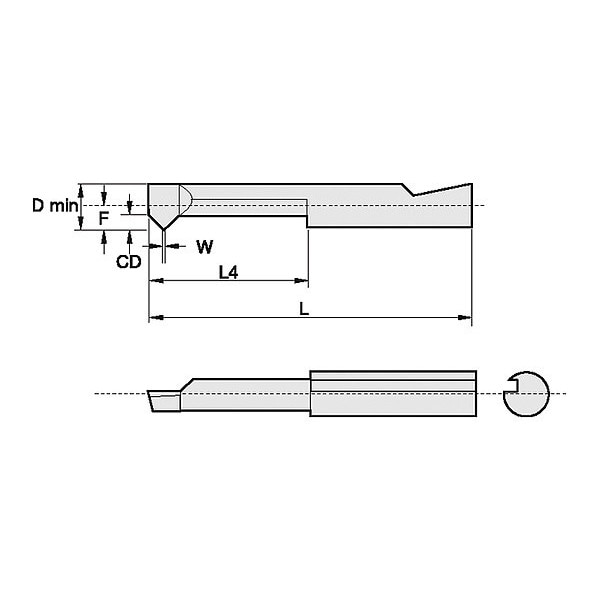

Dimensions

Overall Length 1.1500 in
Depth of Cut 0.0320 in
Max. Hole Depth 1/2 in

Details

Item Threading Tool
Style ATD
Grade CG5
Cutting Direction Right Hand
Coolant Fed Coolant Through
Min. Thread Pitch 1.27mm
Cutter Material Carbide
Max. Threads per Inch 48
Cutting Application Threading
Center to Cutting Tip 0.0760 in
Max. Thread Pitch 0.53mm
Shank Material Carbide
Min. Hole Dia. 0.1750 in
Thread Direction Right Hand
Primary Material Application Nickel, Stainless Steel, Steel, Titanium
Quick Change Yes
Measurement System Fractional Inch
Finish - Machining TiN
Series A/B
Primary Material Application ISO Code M, P, S
Manufacturer Grade CG5

Description

Threading Tool, Carbide, TiN, 0.0760 in, Coolant Through, Threading
