  11. Threading Insert, NTP,

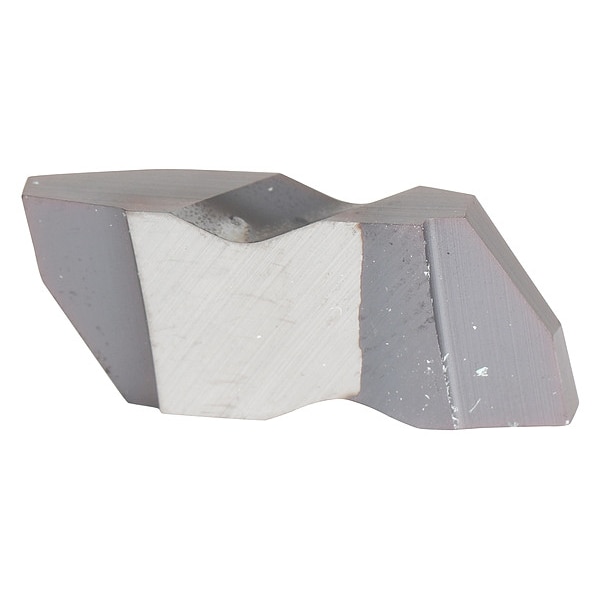

Widia Threading Insert, NTP, NA3L4 - main

Threading Insert, NTP,

  • Mfr # NA3L4

  • Zoro # G3930864

product price: $29.29
/ea
Sold in multiples of 5 for $146.45

Key Features

Thread Type
UN
Style
ACME
Insert Size
3
Chip-Breaker
No
Grade
TN6025
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NA3L4
Zoro #
G3930864
UPC #
4021169733277
Country of Origin
United States

Dimensions

Insert Size
3
Thickness
8.74mm
Corner Radius
0.0065 in
Insert Length
22.65mm
Thread Height Difference
3.25mm
Depth of Cut
3.68mm

Details

Item
Threading Insert
Thread Type
UN
Style
ACME
Chip-Breaker
No
Grade
TN6025
Cutting Direction
Left Hand
Insert Shape
Top Notch
ISO Number
NA3L4
Insert Type
NTP
Thread Standard
ACME
Threading Location
External, Internal
Max. Thread Pitch
4
Insert Style
NTP
Included Angle
60 Degrees
Measurement System
Metric
Material - Machining
Carbide
Cutting Application
Turning
ANSI Code
NA3L4
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Number of Cutting Edges
2
Feed Type
High
Clearance Angle
11 Degrees
Finish - Machining
AlTiN
Secondary Material Application ISO Code
N
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Product Family
Top Notch
Manufacturer Grade
TN6025
Insert Holding Type
Top Clamp
Coating Process
PVD
Primary Material Application ISO Code
K, M, P, S
Thread Profile Type
Partial
Hole Type
No Hole
Thread Direction
Left Hand

Description

Threading Insert, NTP, External, Internal, Cutting Direction Left Hand, ACME, Product Family Top Notch, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium
