  11. Triangle Turning Insert, Triangle, 1/2 in, TPMT, 0.0312 in, Carbide

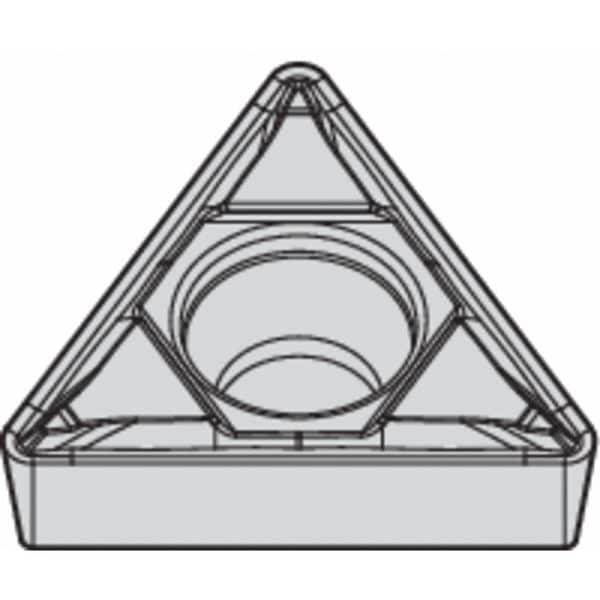

Widia Triangle Turning Insert, Triangle, 1/2 in, TPMT, 0.0312 in, Carbide TPMT432FP WP25CT - main

Triangle Turning Insert, Triangle, 1/2 in, TPMT, 0.0312 in, Carbide

  • Mfr # TPMT432FP WP25CT

  • Zoro # G2810558

product price: $12.69
/ea
Sold in multiples of 10 for $126.90

Key Features

Insert Shape
Triangle
Insert Style
TPMT
Inscribed Circle
1/2 in
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPMT432FP WP25CT
Zoro #
G2810558
UPC #
-
Country of Origin
India

Dimensions

Insert Size
432
Corner Radius
0.0312 in
Nose Radius
0.031"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.217"
Through Hole Inside Dia.
0.217 in
Cutting Edge Length
22 mm
Thickness
0.1875 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPMT
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Grade
WP25CT
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
TPMT220408FP
Coating
Tin
No. of Edges
3
Mounting Style
Screw
Cast Iron (K) Compatibility
Yes
ANSI Number
TPMT432FP
Stainless (M) Compatibility
No
Steel (P) Compatibility
Yes
Relief Angle
11 Degrees
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Steel (P)
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
ANSI Code
TPMT432FP
Primary Material Application ISO Code
P
Primary Material Application
Steel
Coating Process
CVD
Included Angle
60 Degrees
Secondary Material Application
Cast Iron
Shape
Triangle
Chip-Breaker Code
FP
Cutting Application
Outside and Inside Diameter Turning
Manufacturer Grade
WP25CT
Chip-Breaker Style
On One Side
Measurement System
Fractional Inch
Finish - Machining
TiN
Material - Machining
Carbide
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Secondary Material Application ISO Code
K
Clearance Angle
11 Degrees
Number of Cutting Edges
3
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code FP, Inscribed Circle 1/2 in, TiN
